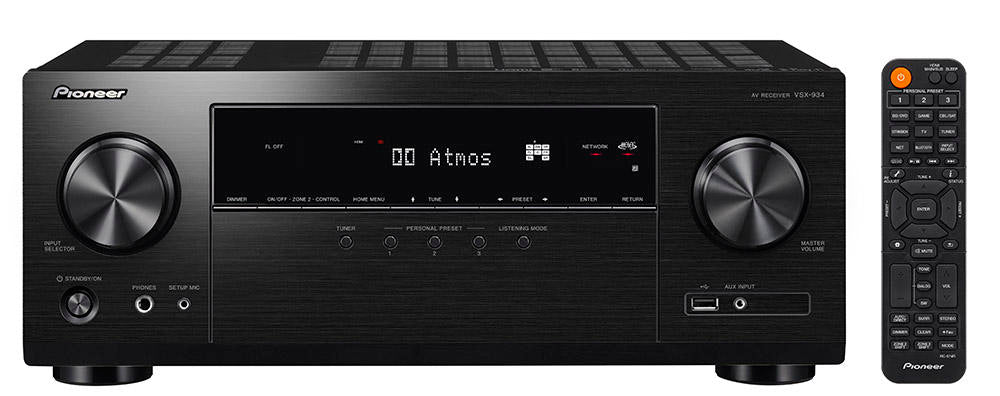

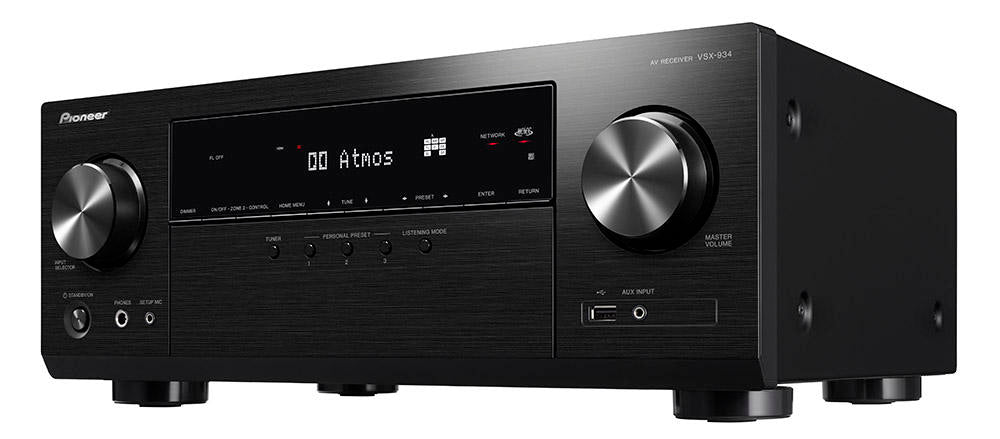

Pioneer VSX-934 7.2-Channel Network AV Receiver

Pioneer VSX-934 7.2-Channel Network AV Receiver

Features

Immerse in 3D surround sound of Dolby Atmos® or DTS:X, or you can still enjoy similar effects by Dolby Atmos Height Virtualizer* and DTS Virtual:X* even without height or surround speakers. Featuring Ultra HD, HDR10, HLG and Dolby Vision™ pass through with support for HDCP 2.3, the VSX-934 offers evermore life-like images.

You can stream songs from various sources via Wi-Fi, Bluetooth®, DTS Play-Fi, SONOS system and Apple AirPlay 2*. Other highlights include Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, and 2 HDMI outputs.

Dolby Atmos®/Dolby Surround Upmixing

The VSX-934 is compatible with 5.2.2ch configuration of the latest cinema sound platform, Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X®/DTS Neural:X Upmixing

DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.

Dolby Atmos Height Virtualization* and DTS Virtual:X*

When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.

Personal Preset

Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.

Dialog Enhancement

With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogues in films, with the up/down key on the remote control.

Next Generation Video Standard Ready

The VSX-934 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Colour Gamut (BT.2020), and HDCP 2.3, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.

MCACC Auto Room Tuning

Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalises response.

Reflex Optimizer

When using Dolby Atmos-enabled speakers, high directivity sound from the unit reflects off the ceiling, while low directivity sound directly reaches the ears. The different pathways cause a phase shift, making the sound feel uncomfortable. The Reflex Optimizer which uses the Phase Control technology adjusts this shift, and improves the localisation of the sound image by aligning the frequencies with those of the floor speakers, creating the ideal reproduction environment.

Works with SONOS

By connecting the VSX-934 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-934 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.

Powered Zone 2 with Dedicated DAC

With the powered feature, the VSX-934 can directly drive speakers in another room, without the need for a separate amplifier. What’s more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.

Zone B Output for Wireless Headphones

The VSX-934 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones.

Built-in Bluetooth® Wireless Technology

Stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 4.2 + LE). The VSX-934 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. With Wake on Play function, the AV receiver automatically wakes up and switches input when a Bluetooth source starts playing.

Specifications

Power Requirements: AC 220-240 V, 50/60 Hz

Power Consumption/Standby: 450 W/0.15 W

Dimensions (W x H x D): 435 x 173 x 370.5 mm

Weight: 9.6 kg
