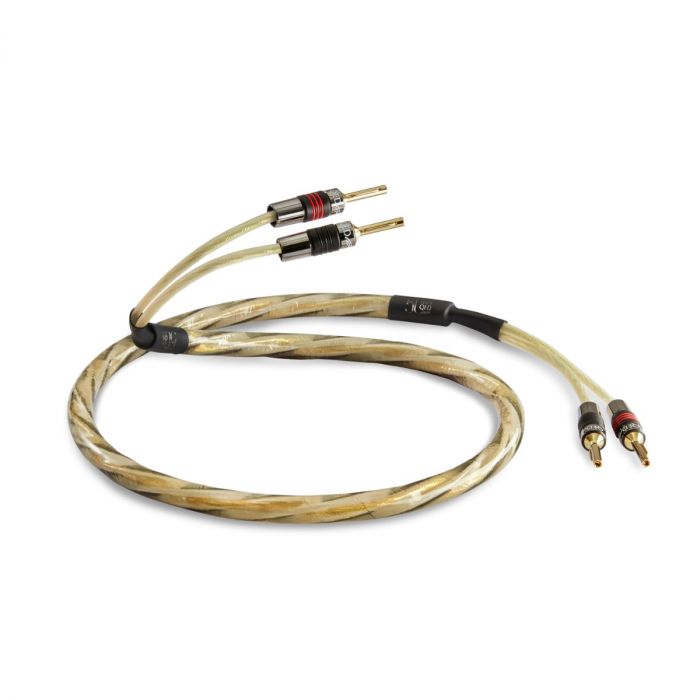

QED Reference Golden Anniversary XT Pre-Term Speaker Cable

R 7,990.00
R 7,990.00
Sale Sold out
Tax included.
size

QED Reference Golden Anniversary XT Pre-Term Speaker Cable



Key features at a glance

  • NEW X-Tubeâ„¢ Plus technology combines X-Tubeâ„¢ with Aircoreâ„¢ to deliver an even, consistent performance across the entire audible frequency range.
  • Ultra-pure Ohno Continuous Cast Copper and 99.999% oxygen-free copper conductor blend helps improve the signal path and signal retention.
  • Low Loss Ultra-Uniform Dielectric insulation boosts efficiency and reduces signal loss.
  • Airlocâ„¢ Forte banana plugs use a cold weld system for permanent attachment to the cable for improved contact area and reduced resistance.

X-Tubeâ„¢ Plus technology

QED’s innovative and proven X-Tube™ technology places a cable’s conductive material around a central hollow insulating rod - and the result is the elimination of the ‘skin effect’ that would otherwise force high-frequency analogue music signals to the outside of the conductor. And by combining X-Tube™ technology with its equally effective Aircore™ technology, QED also reduces the ‘proximity effect’ that can disrupt current distribution in a speaker cable. The result is X-Tube™ Plus: a ground-breaking cable geometry that ensures Golden Anniversary XT is a speaker cable with even, consistent performance across the entire audible frequency range.

Ultra-Pure Ohno Continuous Cast Copper conductors

Golden Anniversary XT uses a unique hybrid blend of 99.999% oxygen-free copper (‘OFC’) and Ultra-Pure Ohno Continuous Cast Copper (‘UP-OCC’) to give the improved signal path and outstanding signal retention of ultra-pure copper conductors - but at a fraction of the price. Thanks to class-leading research and engineering, QED Golden Anniversary XT is the most affordable and attainable speaker cable to exploit the advantages of the continuous-casting process, with this hybrid theoretically improving the path for transients and high frequency detail not available using just OFC alone.

Low-Loss Ultra-Uniform Dielectric insulation

If a speaker cable is to perform to its maximum potential, it’s important that the dielectric material which insulates and protects the central conductors of the cable does so efficiently. Golden Anniversary XT uses a specially developed and formulated low-density polyethylene (‘LDPE’), which works in unison with the cable’s X-Tube Plus configuration to deliver a speaker cable that has high-efficiency and a dissipation factor that is barely measurable.

Airloc™ Forté banana plugs

Airloc™ is a specially developed cold-weld system for permanently attaching QED Forté banana plugs to the company’s entire range of speaker cables, Golden Anniversary XT included. The most vulnerable area of the speaker cable chain is the physical interface between the cable and the speaker or amplifier to which it’s connected - without effective termination, oxidation can occur, degrading the cable’s performance. By using a cold weld crimp-type termination, Forté banana plugs offer maximum resistance to oxidation - for the lifetime of the cable - by effectively turning the cable and the plug into a single, unified object.



Specifications:

Cross-sectional area 2.5 mm2
Wire gauge 14 AWG
Jacket outside diameter 11.5 mm
Loop inductance 0.58 μH/m
Loop resistance 14.8 mΩ/m
Capacitance 42.0 pF/m
Dissipation factor @ 10 kHz 0.0090
Conductors 9 x 19/0.13 mm OFC + 1 x 19/0.13 mm UP-OCC
Insulation LDPE jacket with 100% coverage of golden/mylar tape wrap
Plugs and spades QED Airlocâ„¢ Forte banana plugs
