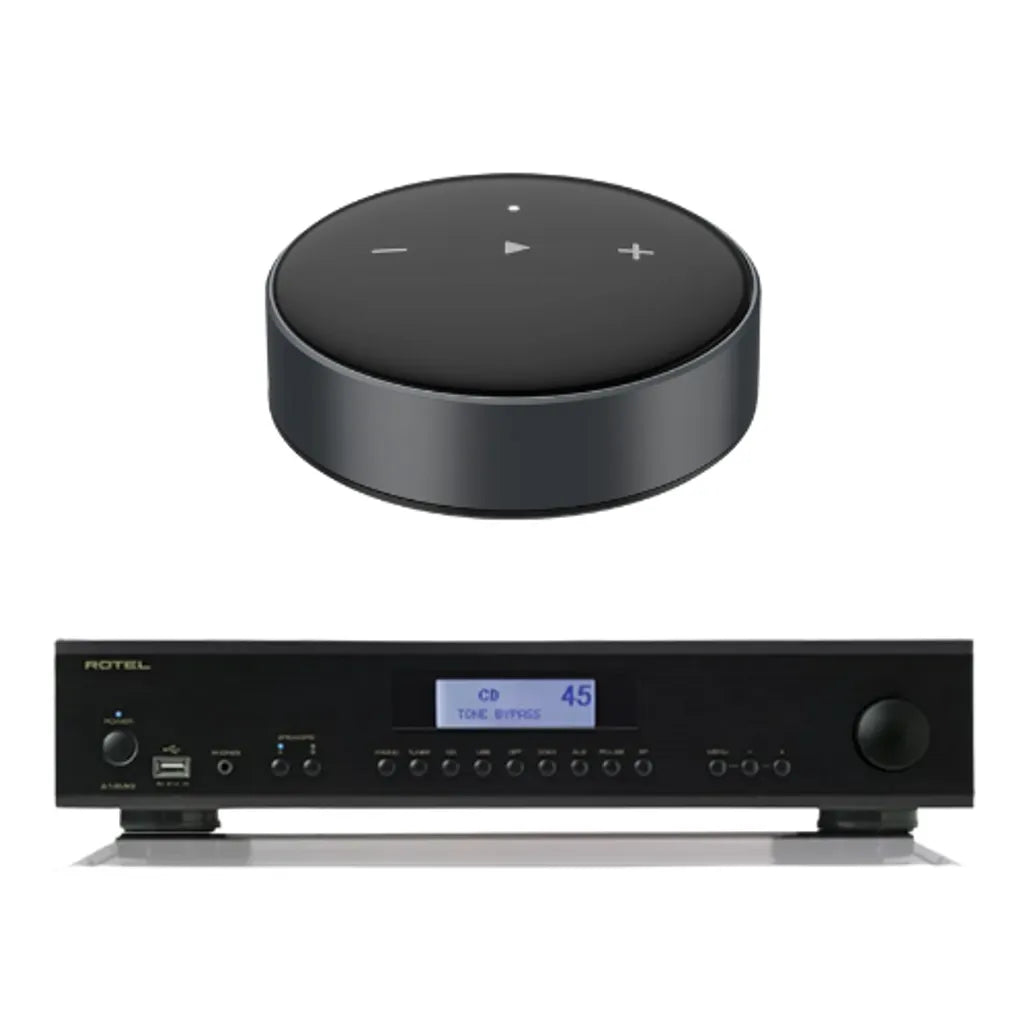

Rotel A14 MKII Stereo Integrated Amplifier (Black) + WiiM Mini Streamer - Each (Black)
Couldn't load pickup availability
Rotel A14 MKII Stereo Integrated Amplifier (Black) + WiiM Mini Streamer - Each (Black)

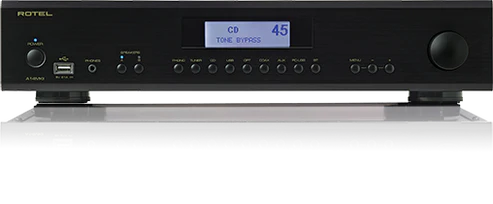

Rotel A14 MKII Stereo Integrated Amplifier - Black
The A14 MKII Integrated Amplifier delivers 80 Watts per channel of Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptXTM and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC and amplifier circuits ensure the A14MKII will deliver countless hours of entertainment.
- Certified Roon Tested
- Supports MQA and MQA Studio
2 x 150 Watts of robust
Class AB power,
4 Ohms
Moving Magnet Phono
input for turntable
connection turntable
Wireless aptX™
and AAC Bluetooth
DESCRIPTION:
The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.
A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.
Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.
The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.
The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.
Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.
The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.
17" × 3.6" × 13.5"
USB Audio Class 2 (up to 32-bit/384kHz)

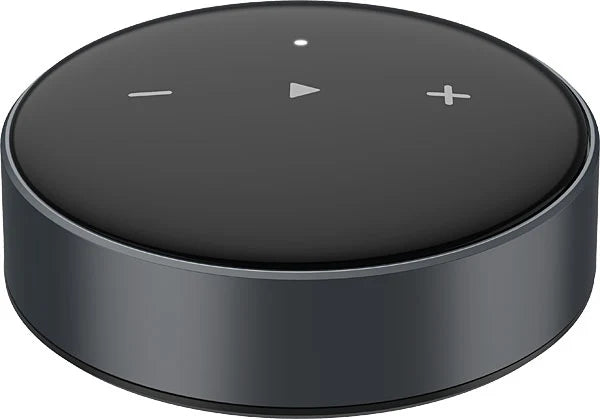

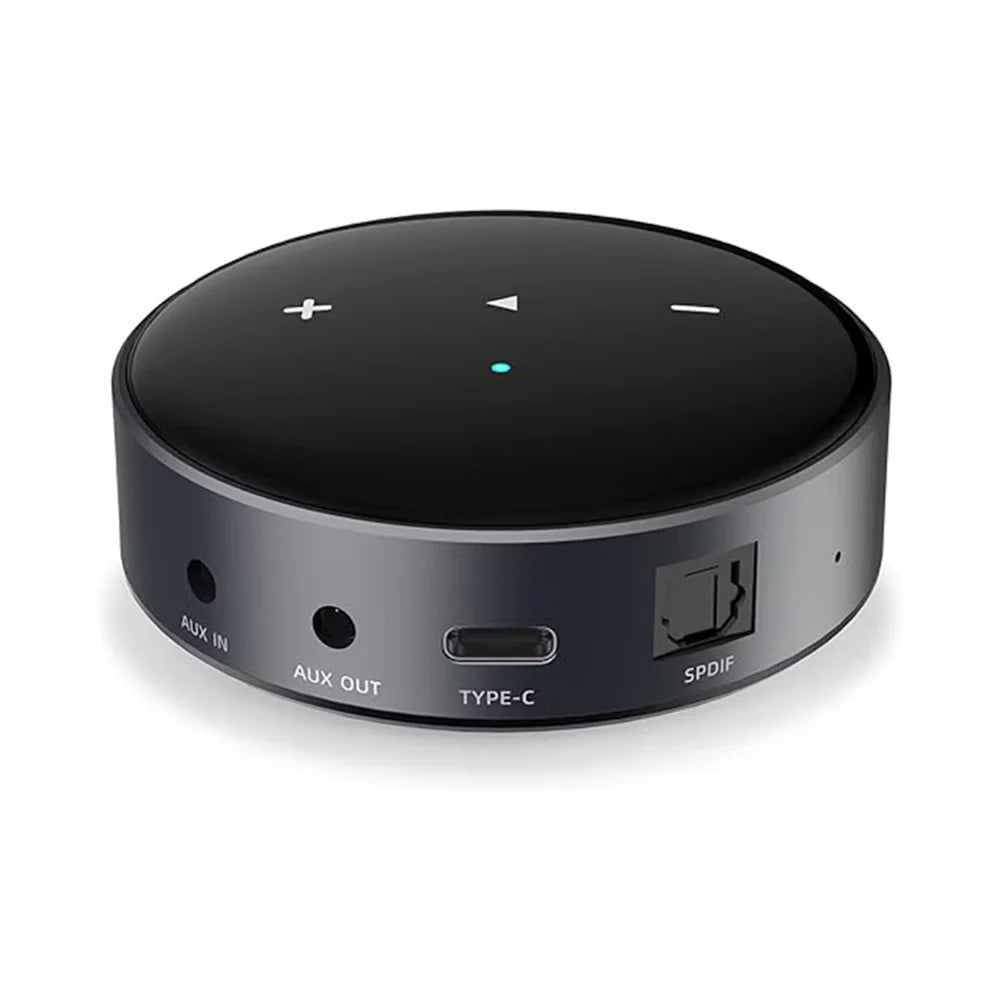

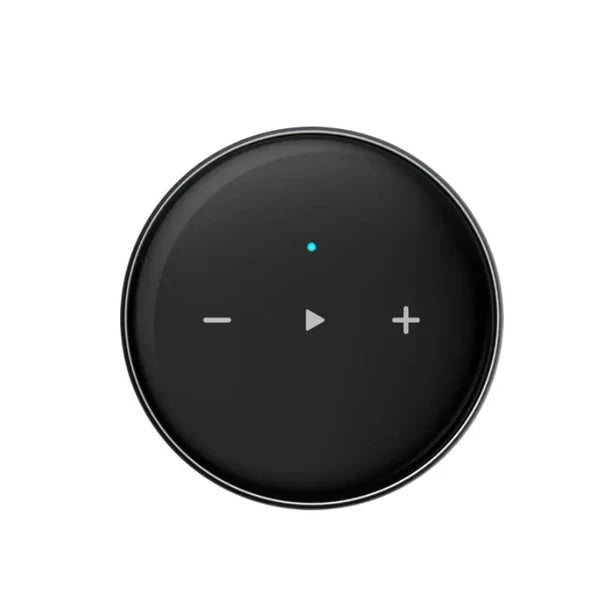

WiiM Mini Streamer - Each - Black
Super easy setup
WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide
and start streaming music in less than 2 minutes.
Stream Hi-Res audio up to 192 kHz/24 bit.
WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio.
The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.
All your content in one app
We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.
Spotify Connect
Use your Spotify app as your remote to control music playback to your WiiM Mini. Spotify Connect works for both Spotify Free and Premium users.
AirPlay 2
Stream audio from your iPhone, iPad or Mac computer to one or multiple audio devices at the same time.
Works with Alexa
Play music with other Alexa devices in a group or use voice to control it from another Alexa built-in device.
TIDAL Connect
Use your TIDAL app as your remote to control music playback through WiiM Mini.
Play music everywhere with multi-room audio.
Building a wireless multiroom system has never been easier. Group WiiM Mini with other AirPlay 2 speakers, Alexa-enabled devices, or another WiiM Minis to have a multi-room/synchronized audio experience.
Automate your routines
Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.
Works with Siri and Alexa
Connect WiiM Mini to your existing Echo or HomePod and use Siri or Alexa to select music,control playback volume, and more.
Technology
High-Res Audio
WiiM audio devices provide the capability to play Hi-Res lossless audio content from Spotify, Amazon Music, TIDAL, Deezer, Qobuz, and more. It supports up to 192kHz, 24-bit audio output which is the same as artist recordings in the studio. The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance, outstanding in all audio categories.
Multi-room and stereo pairing
Use the WiiM Home app to play perfect audio-synchronized music throughout your home. With our hardware, algorithm, and software optimization, we can achieve less than 150uS (0.00015s) synchronization accuracy among speakers as long as your speakers are in the same wireless network.
Gapless Playback
Precise gapless playback is important to your listening experience. With precise gapless playback, the playback timing is guaranteed to be identical to the source. There are no gaps or overlaps (crossfading) between successive tracks. The gap will be very noticeable in " continuous " music such as live concert recordings, some classical music, etc.
Specifications:
Dimensions and Weight:
Dimensions:69 × 69 × 24 mm
Weight:48g
Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
Wi - Fi: Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network
Bluetooth: Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)
Line in: 1Vrms
Line out:
Line in to Line out：
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
BT in to Line out：
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
SPDIF:
Line in to SPDIF out：
Power Output=-3dBFS
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB
BT in to SPDIF out：
Power Output=0dBFS
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB
Power Supply: 5V,1A
LED: Three color status LED - Red, Green and White.
WiiM Mini LED Behaviors >
Button: Capacitive touch - Play/Pause, Volume+, Volume-
