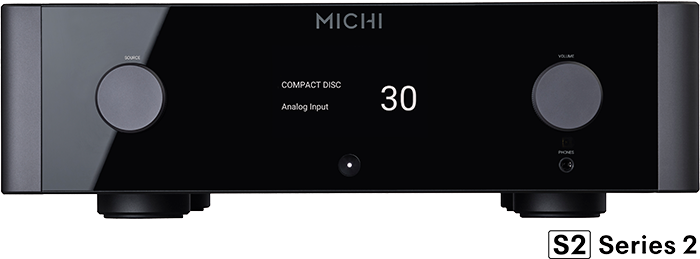

Rotel Michi X3 Series 2 Stereo Integrated Amplifier - Black

Rotel Michi X3 Series 2 Stereo Integrated Amplifier - Black

X3 SERIES 2

Elegant, efficient, uncompromised. The Michi X3 Series 2 Integrated Amplifier combines 350 Watts of robust Class AB output power and an 8-Channel ESS SABRE Digital to Analog converter to deliver a refined and expansive performance. Analog RCA, XLR, Moving Magnet Phono, aptX™  HD Bluetooth, Coaxial, Optical, and PC-USB rendering MQA are all supported.

Michi, expectations amplified.



DESCRIPTION:

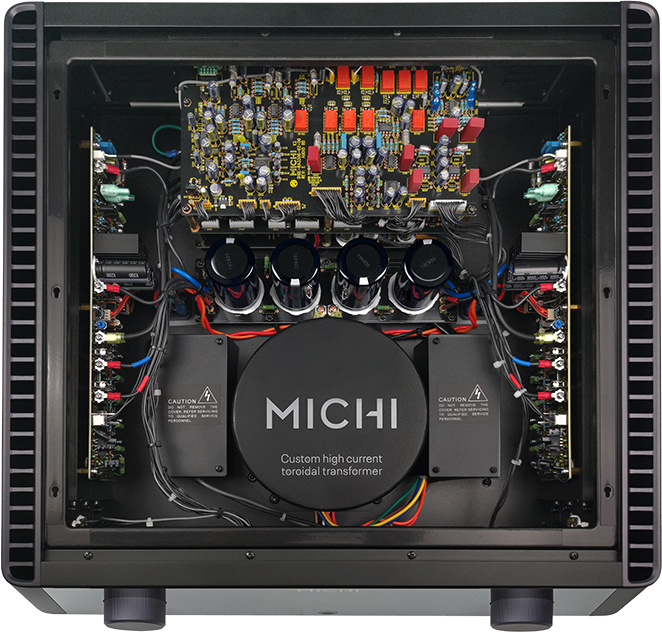

The Michi X3 Series 2 Integrated Amplifier delivers an unparalleled listening experience rendering audio with exceptional accuracy, refinement and detail on an expansive soundstage, courtesy of 350 Watts of robust Class AB output power and an 8-Channel ESS SABRE ES9028PRO Digital to Analog converter.

The elegant industrial design of the Michi X3 Series 2 is at home in any living space, and its 350 watts of Class AB output power pairs with nearly any loudspeaker. Analog, Digital, PC-USB (MQA, PCM, DSD), XLR Balanced, and wireless aptX™ HD Bluetooth sources are all supported, and a Moving Magnet Phono Stage is included for vinyl lovers.

Performance engineered, acoustically refined, and meticulously manufactured to be operated with ease by music lovers and audiophiles alike.




Roon TestedCertified Roon Tested

Class ABSupports MQA and MQA Studio

Power2x 350 Watts of robust power, 4 ohms

ICESS premium 32-bit
8-Channel Digital to
Analog Converter

BluetoothBluetooth with aptX™ HD and AAC

SPECIFICATIONS:



DIMENSIONS (W × H × D)
485 x 150 x 452mm
19" × 6" × 17 3/4"

FRONT PANEL HEIGHT
132 mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
500W

STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W

NET WEIGHT
28.9kg (63.7 lbs.)

BTU RATING
1303 BTU/h

MAXIMUM POWER OUTPUT
350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.008%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB)
Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB)
Phono Input: 20Hz - 20kHz (+0dB, +0.4dB)

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR (20Hz - 20kHz, 8Ω)
350

CHANNEL SEPARATION
>55dB

INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV

INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 60mV

PREOUT LEVEL
1.9V

OUTPUT IMPEDANCE
100Ω

TONE CONTROLS
±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 24-bit/384kHz)*
*Driver installation required
DSD and DoP support
MQA and MQA Studio support
Roon Tested support
