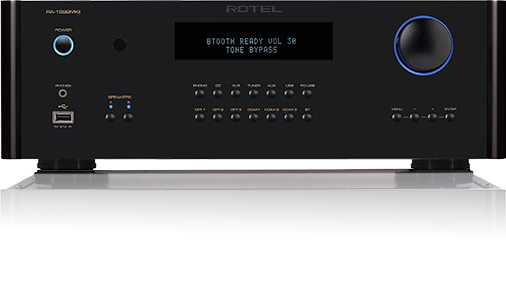

Rotel RA-1592 MKII Stereo Integrated Amplifier - Black

Rotel RA-1592 MKII Stereo Integrated Amplifier - Black



RA-1592MKII

he RA-1592MKII delivers 200 Watts of Class AB output into 8 ohm speakers supporting your favorite analog, digital, XLR, aptXTM and AAC Bluetooth, PC-USB with MQA and Moving Magnet Phono stage inputs. The audiophile grade 32-bit/384kHz DAC and precisely tuned circuits delivers an unprecedented sound stage with exacting positioning.



Class ABCertified Roon Tested

Class ABSupports MQA and MQA Studio

Power2 x 350 Watts of
robust power, 4 Ohms

TurntableMoving magnet
phono input for
turntable connection

BluetoothWireless¬†aptX‚ĄĘ and AAC
Bluetooth



DESCRIPTION:

Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.

Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.

The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimization of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.

Utilizing Rotel’s best-in-class preamplifier topology and awardwinning power amplifier technology, the RA-1592MKII is a nocompromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.

The RA-1592MKII supports your favorite sources including¬†Analog, XLR, Digital, aptX‚ĄĘ and AAC wireless Bluetooth, PC-USB¬†supporting MQA and 32-bit/384kHz PCM, and Moving Magnet¬†Phono stage. Digital to Analog conversion utilizes a Texas¬†Instruments premium DAC with precisely tuned output filter¬†circuits delivering unprecedented acoustic detail, wide sound¬†stage and exacting positioning.¬†

The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.

Convenience, performance and value - the RA-1592MKII delivers.



SPECIFICATIONS:



DIMENSIONS (W √ó H √ó D)
431 √ó 144 √ó 425mm
17" √ó 5.7" √ó 16"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
500W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
17.63kg (38.87lbs.)

BTU RATING
1239 BTU/h

MAXIMUM POWER OUTPUT
350W/Ch (4ő©)

CONTINUOUS POWER OUTPUT
200W/Ch (8ő©)

TOTAL HARMONIC DISTORTION
 (THD)
<0.008%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ¬Ī0.5dB
Digital Inputs:
10Hz - 90kHz, ¬Ī2dB
Phono Input:
20Hz - 20kHz, ¬Ī0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
600

INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 100kő©
Line Level Inputs (XLR): 100kő©
Digital Inputs: 75ő©
Phono Input (MM): 47kő©

INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 52mV

PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100ő©

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/192kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
