Rotel

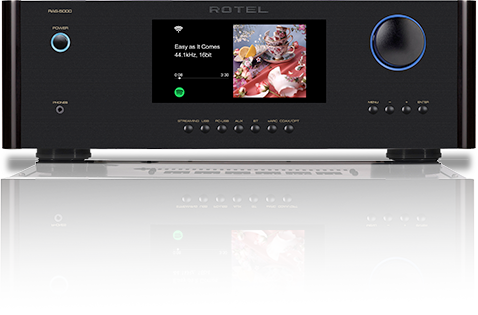

Rotel RAS-5000 Integrated Streaming Amplifier - Black

Regular price R 79,990.00
Regular price Sale price R 79,990.00
Sale Sold out
Tax included.

Rotel RAS-5000 Integrated Streaming Amplifier - Black



Simplicity and performance meet in the Rotel RAS-5000, a component designed to fit into your lifestyle and elevate your entertainment experience.



2 x 220 Watts of robust
Class AB power, 4 Ohms

Class AB amplifier design

ESS premium 32-bit
Digital to Analog Converter

Wireless aptX™ HD
and AAC Bluetooth

Includes remote control




Description:

Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.

The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.

Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.



Engineered with care.



DIMENSIONS (W × H × D)
431 x 144 x 425 mm
17” x 5 7/8” x 16”

FRONT PANEL HEIGHT
132.6 mm / 5 1/4”

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
380W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
15.7 kg, 34.6 lbs

BTU RATING (4Ω, 1/8th power)
1027 BTU/h



POWER OUTPUT
220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)

TOTAL HARMONIC DISTORTION
(THD)
<0.03%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10 Hz – 70k Hz, (±3 dB, MAX)

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 105dB
INTERMODULATION DISTORTION
(60 Hz : 7k Hz, 4:1)
<0.03%

DAMPING FACTOR
290

INPUT SENSITIVITY
Line Level Inputs: 0.78V
Digital Inputs: -8dBfs
INPUT IMPEDANCE
Line Level Inputs:46k Ohms
Digital Inputs: 75 Ohms

INPUT OVERLOAD
Line Level Inputs: 4.1V

TONE CONTROLS
±10dB at 100Hz / 10kHz
HDMI
Support eARC function

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Ready
