Rotel

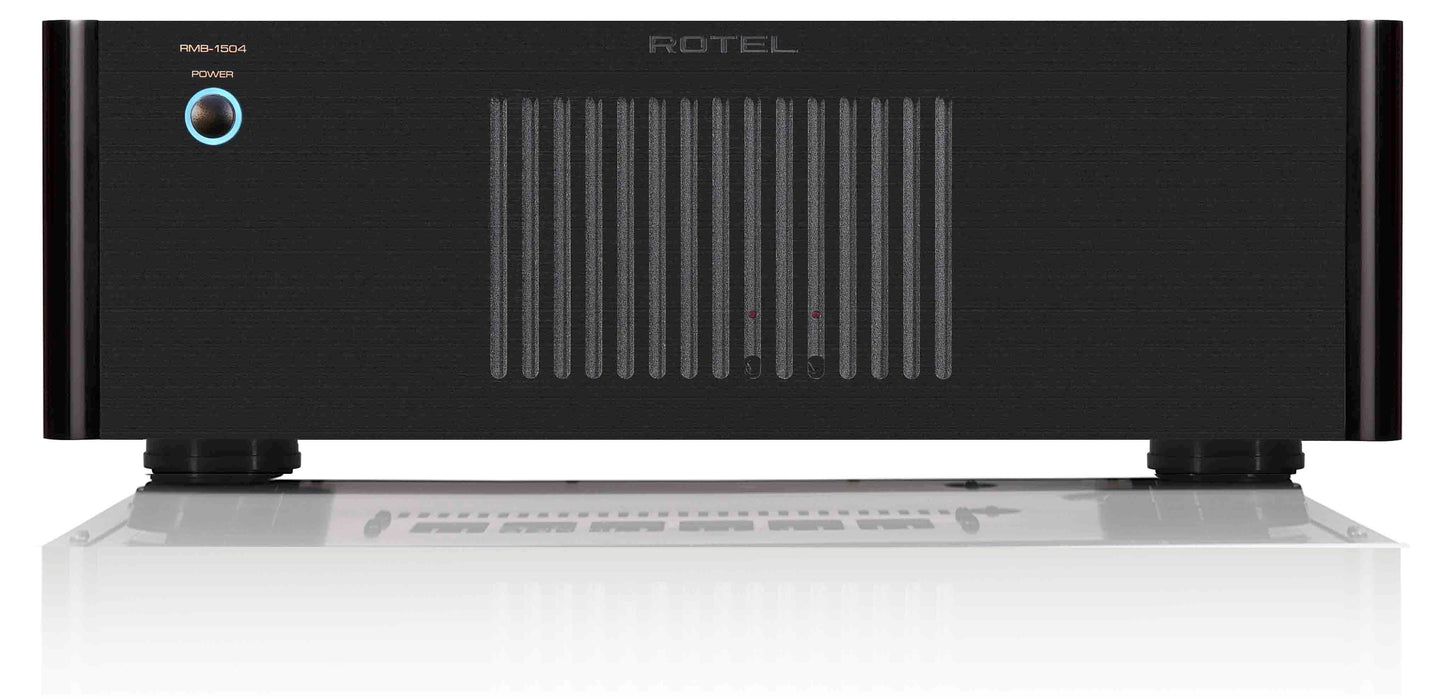

Rotel RMB-1504 Multi Channel Amplifier - Black

Regular price R 29,390.00
Regular price Sale price R 29,390.00
Sale Sold out
Tax included.

Rotel RMB-1504 Multi Channel Amplifier - Black

ย

RMB-1504

The RMB-1504 Class AB 4-channel amplifier delivers on the ongoing commitment of performance without compromise building on over 60 years of Rotel amplifier design and in-house manufacturing of Hi-Fi electronics. This amplifier provides the power and refinement suited for home theater installations as well as custom installation multi-room audio solutions.

ย

Power4 x 70 Watts ofย
robust power

Class ABClass AB amplifier
design

Rack MountOptional rack earsย
available

Automatic signal sensingAutomatic signal sensing

12 volt trigger12 volt trigger input

ย

DESCRIPTION:

The RMB-1504 Class AB 4-channel amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads with the ongoing commitment of performance without compromise building on over 60 years of Rotel amplifier engineering, design and manufacturing experience. This amplifier provides power and refinement for object based overhead speakers in home theater installations and the demanding drive required for custom installation and multi-room audio solutions.

The 12 volt trigger input and output connections, user selected audio signal sense power control, front panel volume attenuators, audio output link connections, 5-way speaker binding posts and available rack mount kitย ย (rack ears included in some markets) provides ultimate installation flexibility.

An oversized factory built toroidal transformer andย high efficiency capacitors drive an array of high currentย output transistors ensuring fast transient timing,ย accurate detail and controlled consistency of lowย frequency regardless of the loudspeakers load ratingย or cable run distance. Maintaining crucial timing andย energy while delivering effortless power is a signatureย trait of this amplifier providing increased speakerย placement options.

Critical evaluation of the circuit design and meticulousย selection of each acoustic audio components ensuresย accuracy, power and efficiency all coupled with anย unsurpassed build quality ensuring this amplifierย proudly wears the Rotel name.

ย

SPECIFICATIONS:

DIMENSIONS (W ร— H ร— D)
431 ร— 144 ร— 443mm
17" ร— 5.7" ร— 17.5"
ย
FRONT PANEL HEIGHT
3U / 132.6mm (5.25")
ย
POWER REQUIREMENTS
230V, 50Hz
ย
POWER CONSUMPTION
450W
ย
STANDBY POWER CONSUMPTION
Standbyย  ย  ย  ย  < 0.5W
Signal Senseย  1 W
ย
NET WEIGHT
14.9kg (32.8lbs.)
ย
BTU RATING
810 BTU/h

CONTINUOUS POWER OUTPUT
4 x 70W/Ch (All channels driven, 8ฮฉ)
ย
TOTAL HARMONIC DISTORTION (THD)
(20Hzโ€“20kHz, 8ฮฉ) <0.03%
ย
FREQUENCY RESPONSE
10Hz - 100kHz ยฑ1dB
ย
S/N RATIOย (IHF "A" Weighted)
115dB
ย
GAIN
26dB

INTERMODULATION DISTORTIONย (60Hz:7kHz, 4:1)
<0.03%
ย
DAMPING FACTOR
>200
ย
SPEAKER IMPEDANCE
4ฮฉ minimum
INPUT SENSITIVITY
1V
ย
INPUT IMPEDANCE
20kฮฉ
