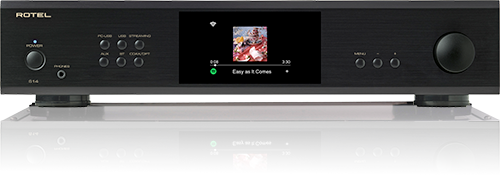

Rotel S-14 Integrated Network Streamer - Black

Rotel S-14 Integrated Network Streamer - Black



S14

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power.

Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.



DESCRIPTION:

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.

The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility.

Stream using your favorite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 , and Google Cast for the ultimate ease of streaming your music.

The S14 also includes Coaxial, Optical, Analog, PC-USB and aptXTM HD Bluetooth source inputs for legacy devices and even plays MP3, WMA and AAC files from flash drives.

This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with Rotel.





Certified Roon Ready

Supports MQA and MQA Studio

2 x 150 Watts of robust
Class AB power,
4 Ohms

ESS premium 32-bit
Digital to Analog Converter

Wireless aptX™ HD
and AAC Bluetooth



 SPECIFICATIONS:

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3 5/8" × 13 1/2"

FRONT PANEL HEIGHT
80mm (3.15")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
280W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
9.15kg (20.17lbs.)

BTU RATING (4Ω, 1/8th power)
733 BTU/h

MAXIMUM POWER OUTPUT
150W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
80W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
(THD)
<0.04%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2.0dB, Max

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 98dB

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
400

INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: -20dBfs
INPUT IMPEDANCE
Line Level Inputs: 47kΩ
Digital Inputs: 75Ω

INPUT OVERLOAD
Line Level Inputs: 4.5V

TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
