Rotel M8 Monoblock Amplifier - Black

Rotel M8 Monoblock Amplifier - Black



M8

The Michi M8 Monoblock Amplifier no-compromise Class AB amplifier delivers 1,080 watts into 8 ohms and an astounding 1,800 watts into 4 ohm loads.  The design architecture ensures a smooth, accurate and relaxed delivery of the audio to even the most demanding loudspeakers while maintaining critical energy, rhythm and timing.



Power1080 Watts of
robust power

Class ABClass AB amplifier
design

CapacitorPatented British
bulk storage
capacitors

TransformerMassive power supply
using Dual Toroidal
Transformers

XLRBalanced XLR inputs





DESCRIPTION:

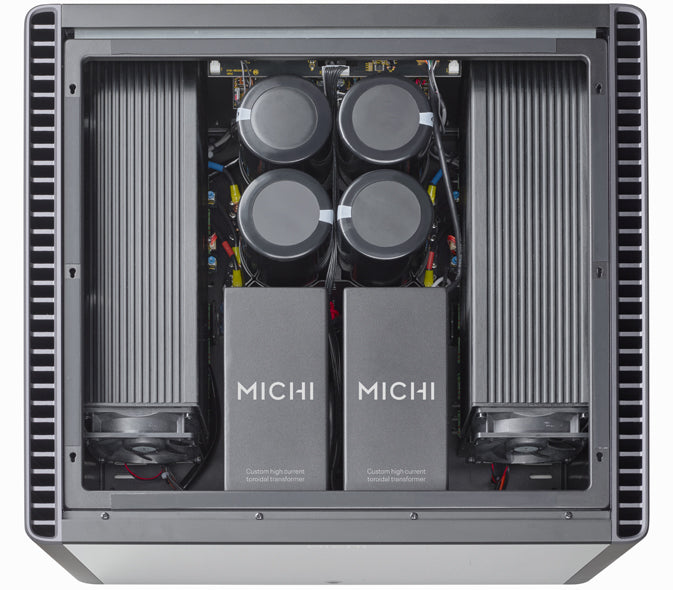

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.

To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

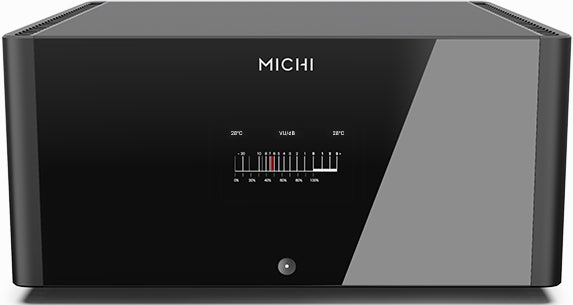

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.



SPECIFICATIONS:


DIMENSIONS (W × H × D)
485 × 238 × 465mm
19" × 9.375" × 18.25"

FRONT PANEL HEIGHT
220mm (8.625")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
1200W

STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W

NET WEIGHT
59.1kg (130.3lbs.)

BTU RATING (4Ω, 1/8th power)
3200 BTU/h

CONTINUOUS POWER OUTPUT
1080W/Ch (8Ω)
1800W/Ch (4Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.018%

FREQUENCY RESPONSE
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.5dB)

S/N RATIO (IHF "A" Weighted)
120dB

GAIN
Unbalanced (RCA): 34dB
Balanced (XLR): 30dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
200

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
Unbalanced (RCA): 1.85V
Balanced (XLR): 3V

INPUT IMPEDANCE
Unbalanced (RCA): 12.5kΩ
Balanced (XLR): 100kΩ
