SVS

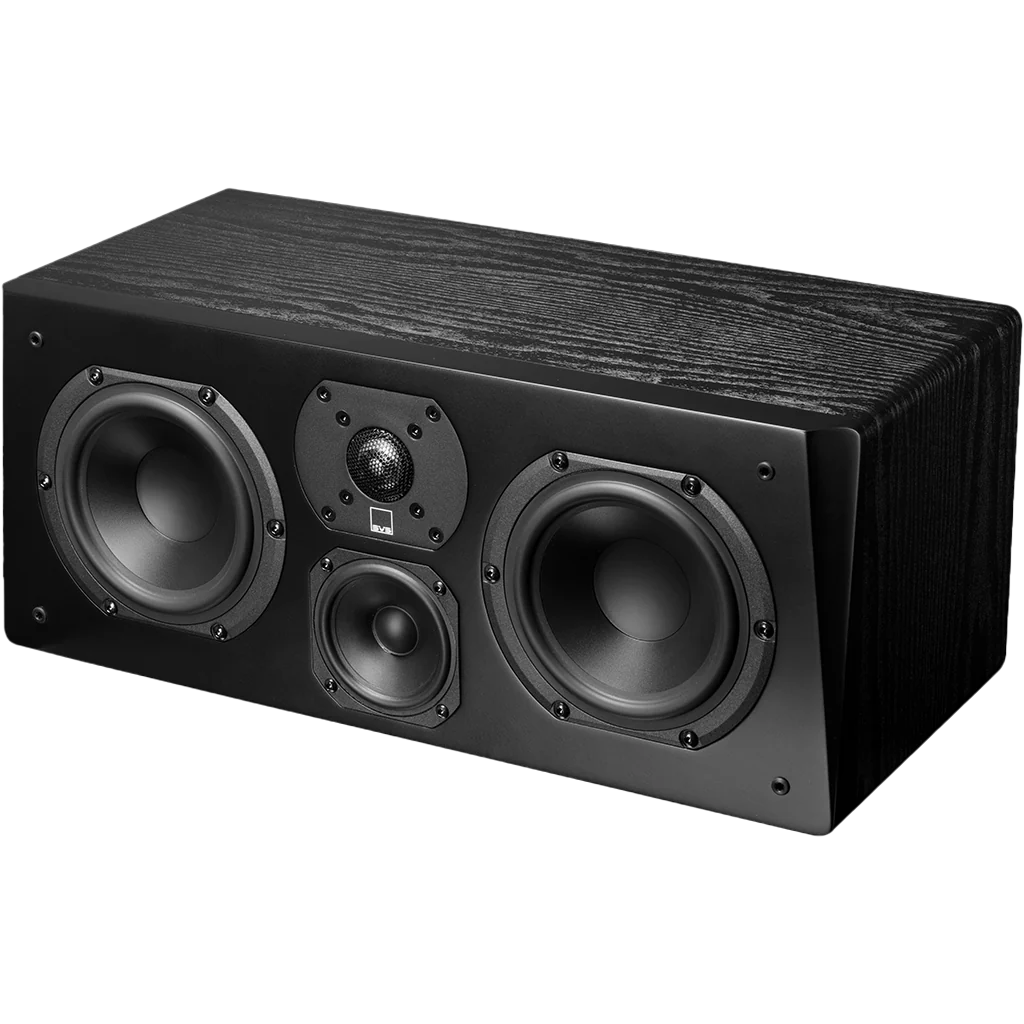

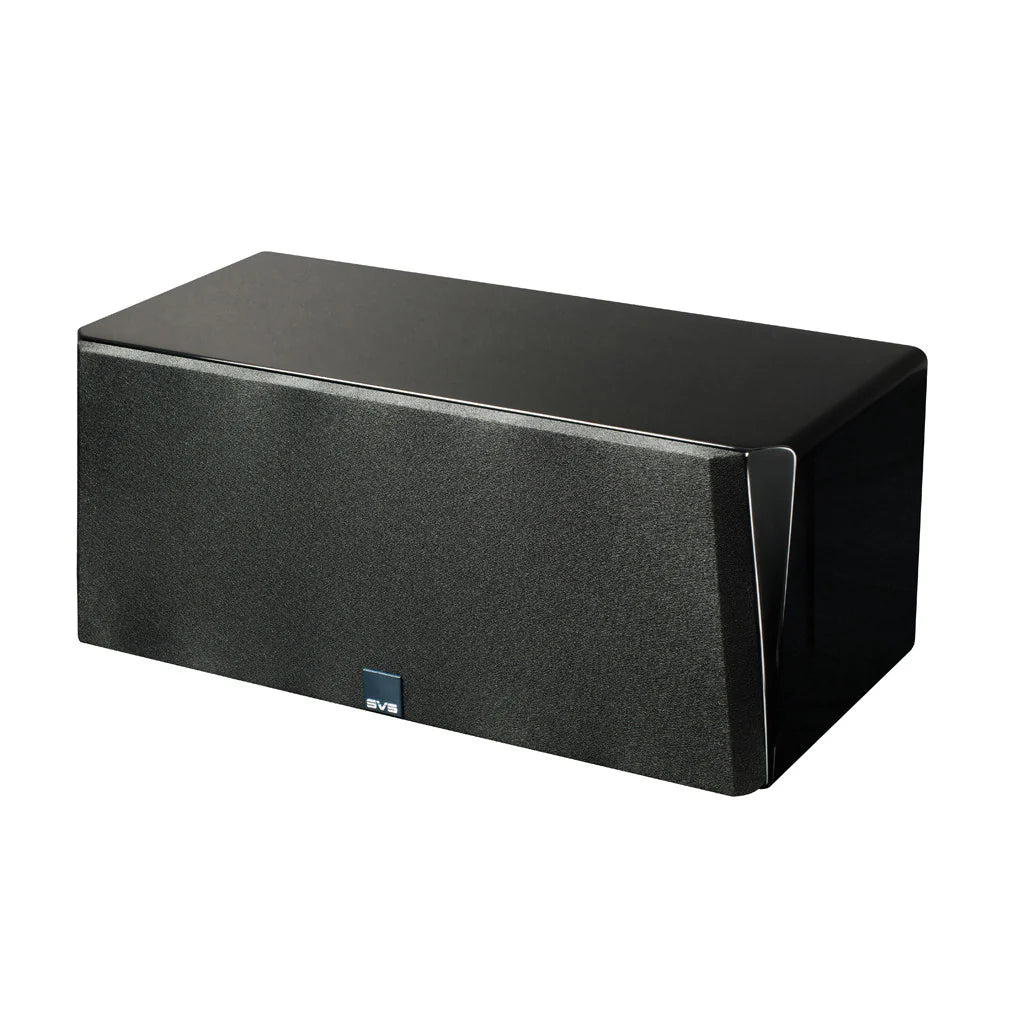

SVS Prime Center Speaker - Each - Black

Regular price R 12,990.00
Regular price Sale price R 12,990.00
Sale Sold out
Tax included.

SVS Prime Center Speaker - Each - Black

ย

Well-equipped to play the most important role in a surround sound home theater, every aspect of the Prime Center speaker was designed for sonic excellence. From the premium grade drivers and sophisticated SoundMatch three-way crossover to the extra-thick baffle, internal bracing, and FEA optimized tweeter diffuser, the Prime Center channel speakerโ€™s design and engineering features drive its performance into uncharted territory for a center channel speaker at its price.


Prime Driver & Tweeter Design

Since center channel speakers handle a large percentage of the audio content, including dialogue and vocals, and much of that sound falls within the mid-range, SVS engineered an incredibly light and rigid polypropylene cone for the Prime Center speakerโ€™s mid-range driver to provide a flat frequency response and to generate the SPL necessary for stunning in-room dynamics and an expansive front soundstage. The mid-range driver is also housed in its own sub-enclosure within the cabinet to ensure thereโ€™s no modulation from the robust woofers.

The 1-inch aluminum dome tweeter is light, efficient, and rigid, playing crystal clear at high volumes for a sense of utter transparency, while offering an โ€˜airyโ€™ presentation and incredibly unveiled highs so female vocals and dialogue always sound crisp, smooth and clear. The potent 5.25-inch woofers are built on an all-new cast ABS-fiberglass composite basket for precise component alignment and an inert frame without resonances or added harmonics. The light and rigid cone material render a flat frequency response and deliver deep and authoritative low frequency playback. For optimized bass extension the cabinet is rear ported and optimally tuned for dual woofers.

ย

Innovative SoundMatch Crossover Design

Providing the perfectly balanced voicing for the Prime Center speaker is a proprietary SVS SoundMatch crossover that sports premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards. This combination of high-quality components yields lower distortion, tighter tolerances and all around better sound for the critical, dialogue and action-focused front soundstage. The 3-way crossover is uniquely tuned so each driver blends perfectly with each other while offering excellent on and off-axis response and pinpoint spatial imaging for the most convincing audio experience possible.

ย

Performance Driven Cabinet Design and Geometry

Tapered edges on the Prime Center speakerโ€™s front baffle, known as chamfers, minimize edge diffraction for clear and precise soundstaging. The cabinetโ€™s presence is substantial but it does not take over a room visually and offers a modern industrial feel with acoustic enhancements like shorting rings and a tweeter diffuser. All of these advancements are packed into an attractively styled cabinet available in stunning piano gloss black or premium black ash finish.

ย

Specifications:

Frequency Response / Acoustic Data:

  • Rated bandwidth: 48 Hz-25 kHz (ยฑ3 dB)
  • Nominal impedance: 8 ohms.
  • Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300-3kHz)
  • Recommended amplifier power: 20-200 watts.

Speaker Specs:

  • Black ash and piano gloss black finish options
  • Single set of 5-way binding posts
  • Dual 1โ€ wide-flared rear-firing ports
  • Cloth grille with pin/cup retention system
  • Elastomer stick-on bumper feet (adds 3mm to height)
  • Center Channel Loudspeaker
  • Cabinet Dimensions: 7.6" (H) X 18.6" (W) X 8.6" (D)
  • Overall Dimensions: 7.7" (H) X 18.6" (W) X 9.2" (D) (includes grille and bumper feet)
  • Shipped Dimensions: Shipped Dimensions: 12.2" (H) X 23" (W) X 13.4" (D)
  • Weight Unboxed: 20.2 pounds
  • Shipped Weight: 23.3 pounds

Driver Specs:

1โ€ Aluminum Dome Tweeter:

  • FEA-optimized diffuser for airy and unveiled presentation
  • Aluminum dome for exceptional transient response

3.5โ€ Midrange Driver:

  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Dual 5.25โ€ Woofers:

  • Long stroke motor and suspension for high output
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs:

Crossover:

  • 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
  • Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
  • Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)

Cabinet:

  • Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
  • Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
  • FEA-optimized cabinet and bracing eliminates resonances
