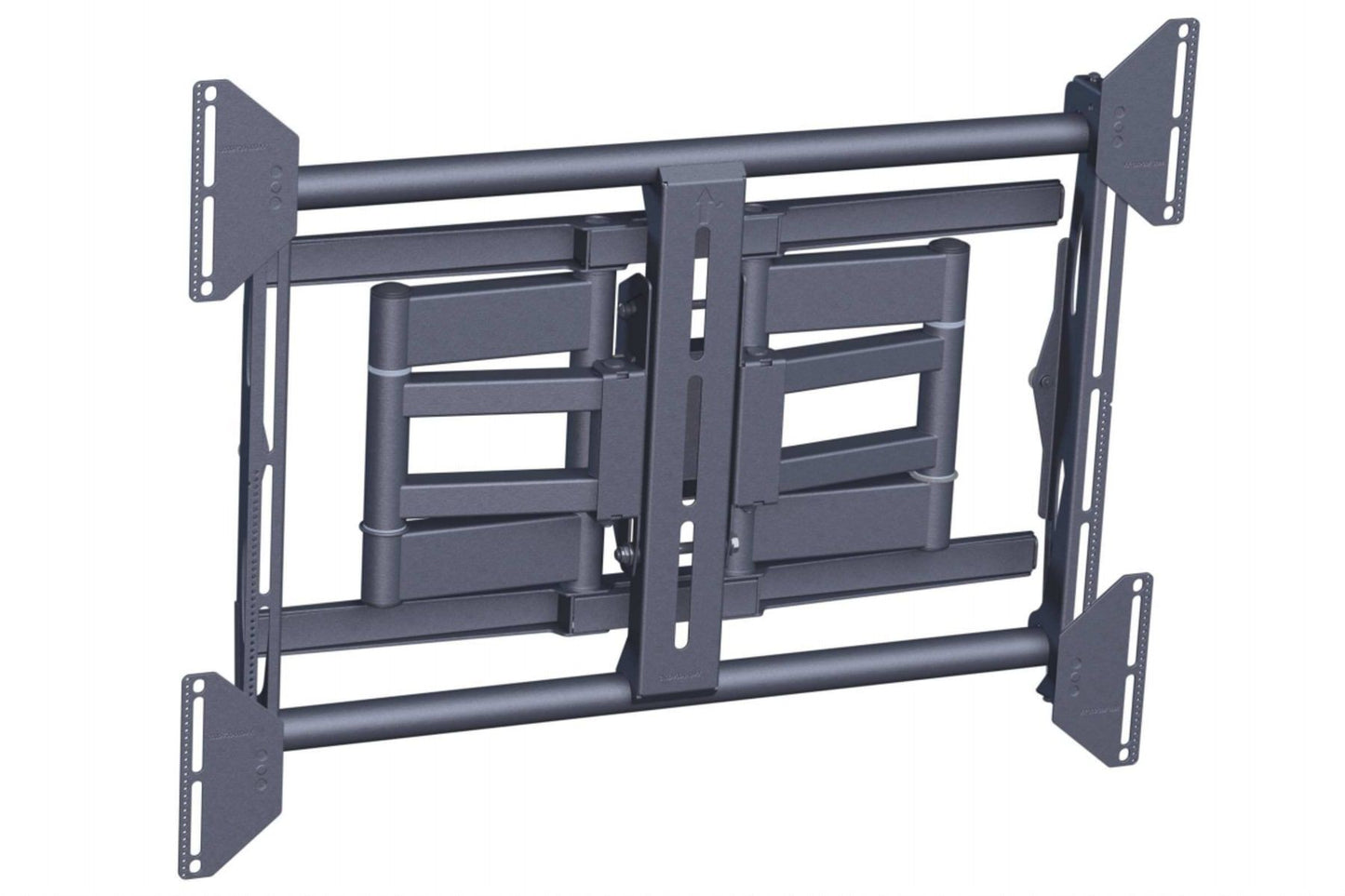

Vogel's PFW 6851 Display wall mount turn and tilt

PFW 6851 Display wall mount turn and tilt

The PFW 6851 is a swingout mount for displays up to 80 kg / 175 lbs. Typically fits displays ranging from 42 - 75 inch or displays with a mounting pattern of 200 x 200 mm to 820 x 650 mm.

The PFW 6851 allows up to 45° of swivel to both sides, 10° of tilt and extends up to 40 cm from the wall.

Specifications
Article number - 7368510
Min. screen size (inch) - 42
Max. screen size (inch) - 85
Max. weight load (kg) - 80
Min. horizontal hole pattern (mm) - 200
Max. horizontal hole pattern (mm) - 820
Min. vertical hole pattern (mm) - 200
Max. vertical hole pattern (mm) - 650
Turn - Up to 90°
Tilt - Tilt up to 10°
Orientation - Landscape
Max. distance to the wall (mm) - 404
Min. distance to the wall (mm) - 79
Number of arms - 2
Number of pivot points - 3
Levelling function - Post-installation horizontal levelling
Recessed installation - Yes
Colour - Black
Series - PFW 6000 Series
Lock options - No lock
