Vogel's

Vogel's PFW 6852 Display wall mount turn and tilt

R 18,999.00
R 18,999.00
Sale Sold out
Tax included.

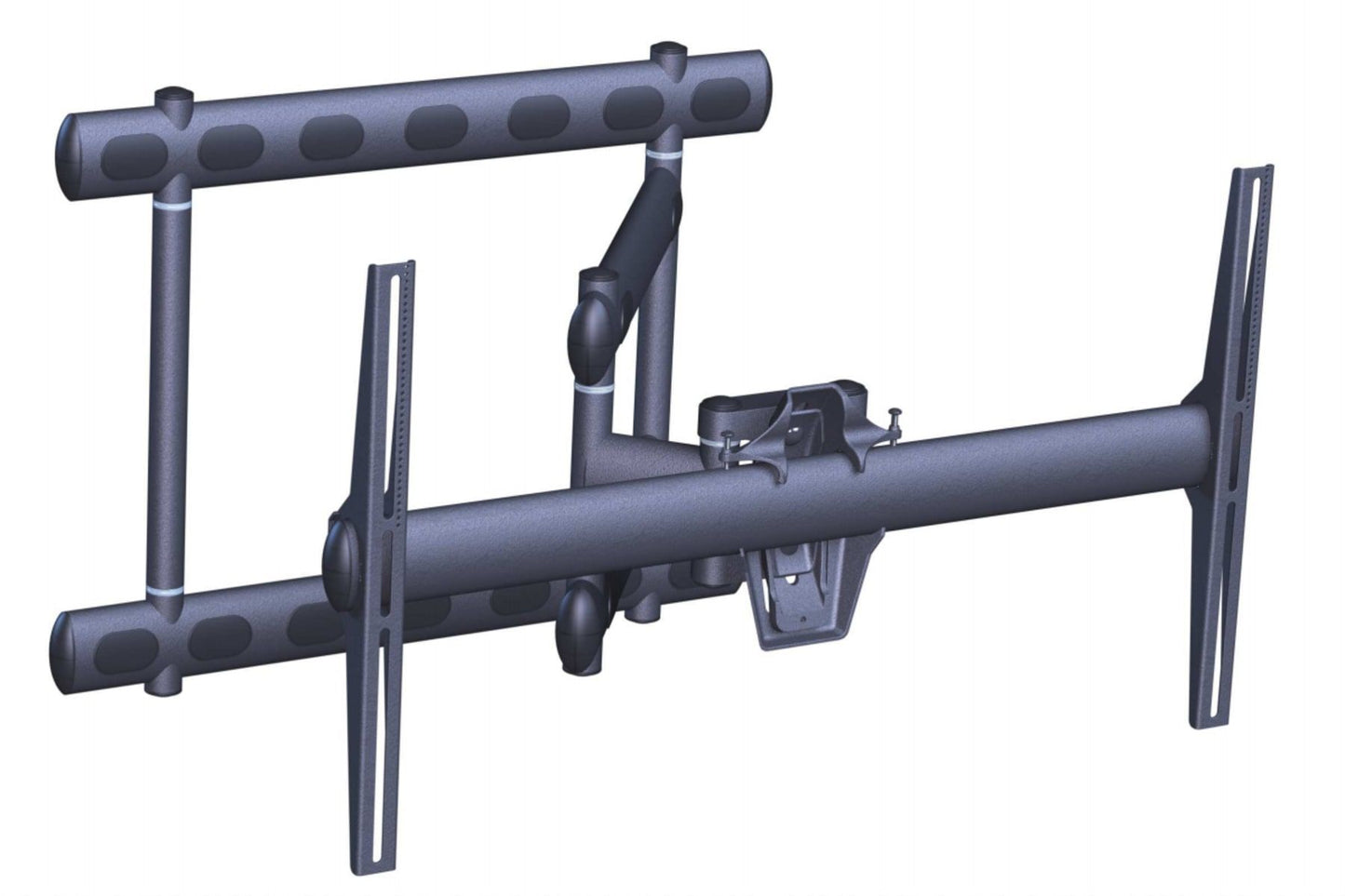

Vogel's PFW 6852 Display wall mount turn and tilt

This full-articulation swingout mount for flat-panels up to 136 kg / 300 lbs. Typically fits displays larger than 40 inch or displays with a mounting pattern of 225 x 225mm to 985 x 665mm.

The PFW 6852 extends 66 cm. from the wall and allows up to 90° of swivel to both sides. The swingout arm can be pulled out from the wall and move to the left or right, while providing 10° of tilt.

Specifications

Article number - 7368520
Min. screen size (inch) - 40
Max. screen size (inch) - 98
Max. weight load (kg) - 136
Min. horizontal hole pattern (mm) - 225
Max. horizontal hole pattern (mm) - 985
Min. vertical hole pattern (mm) - 225
Max. vertical hole pattern (mm) - 665
Turn - Up to 180°
Tilt - Tilt -10°/+10°
Orientation - Landscape
Max. distance to the wall (mm) - 658
Min. distance to the wall (mm) - 101
Number of arms - 1
Number of pivot points - 3
Recessed installation - Yes
Colour - Black
Series - PFW 6000 Series
Lock options - No lock
