Wharfedale
Wharfedale Diamond 12.4i Home Theatre System (Black)
Couldn't load pickup availability
Wharfedale Diamond 12.4i Home Theatre System (Black)

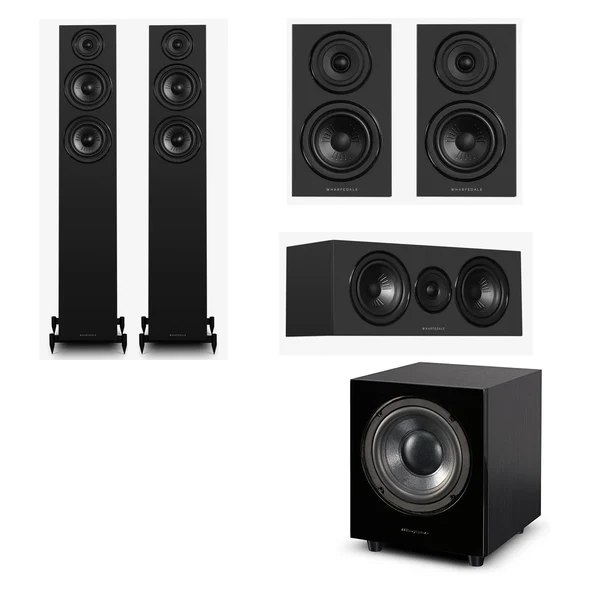

This Package Includes:
- 1x Wharfedale Diamond 12.4i Floorstanding Speakers - Pair (Black)
- 1x Wharfedale Diamond 12.1i Bookshelf Speakers - Pair (Black)
- 1x Wharfedale Diamond 12.Ci Center Channel Speaker - Each (Black)
- 1x Wharfedale WH-D10 Subwoofer - Each (Black)
Wharfedale Diamond 12.4i Floorstanding Speakers - Pair (Black)
DIAMOND 12.4i
Since its launch in 2020, the Wharfedale DIAMOND 12 Series has received widespread praise as a standard for performance and value in affordable hi-fi speakers. After over five years of consistent success, awards, and positive reviews from audio enthusiasts and critics alike, the DIAMOND 12 Series has established itself as one of the most enduring and best-selling speaker series.
Now, Wharfedale is excited to introduce the updated DIAMOND 12i Series. This new series features luxurious, modern finishes and subtle acoustic improvements that build on the strong foundation of the original design.
A Design Legacy — Now with a Contemporary Edge
The DIAMOND 12 Series raised the bar in its category for sound quality, design, and musical engagement. Today, Wharfedale’s in-house team has further developed the series, focusing not on reinventing but on refining and improving.
The series now includes three beautiful new finishes that complement modern interiors:
All-Black: A deep, rich semi-matte finish that offers a sleek, contemporary look—subtle and sophisticated.
Classic Walnut with Semi-Matte Black Baffle: A timeless classic reimagined, blending the natural warmth of walnut with a clean, contrasting baffle for a premium appearance.
Stone Grey: A striking modern option that suits minimalist styles and stands out
More Than Skin Deep
Known for quality, affordability, and exceptional build quality, the Wharfedale Diamond series has always prioritised fit and finish. The new luxurious finishes enhance the loudspeaker’s premium look and feel, matching its impressive sound performance.
Incremental Acoustic Enhancements
Along with the aesthetic upgrade, Wharfedale’s engineering team revisited the speaker’s internals, paying special attention to bass port tuning and airflow control. Small but significant changes to the port design and internal damping have improved bass clarity and low-frequency control—especially in real-world environments. Listeners will notice the difference.
A thorough port design effort led by Wharfedale’s Director of Acoustic Design, Peter Comeau, and senior engineers Dan Bailey Ornellas and Oliver Davies aimed to refine low-frequency performance through extensive empirical testing and listening evaluations. The development process lasted several months and included advanced techniques, such as laser interferometry, extensive anechoic and in-room measurements, and computational fluid dynamics (CFD) to assess airflow and pressure in the port structure. Critical listening sessions—totalling hundreds of hours—were held to confirm the results. The outcome is a bass response that is better controlled and more articulate, with improved transitions between low and mid frequencies and consistent spatial performance, no matter the placement. These changes maintain the DIAMOND 12’s signature neutrality while subtly increasing listener engagement and dynamic flow.
At the Core: Klarity™ Cone Technology
The DIAMOND 12i mid/bass driver cones remain unchanged and are made from Klarity™, a special blend of polypropylene and mica that provides excellent stiffness and low distortion. This results in a cone that is lightweight, well-damped, and very responsive, delivering natural, expressive dynamics and precise transient response.
A low-damping surround enhances the cone’s efficiency and dynamic range, while ribbed shaping and profile simulation ensure a smooth, linear frequency response without added distortion.
Advanced Magnet Assembly
Each mid/bass driver features a precise magnet system with an aluminium compensation ring to reduce the effects of inductance changes as the voice coil moves. This advanced motor system minimises intermodulation and distortion, producing cleaner, more accurate sound.
The voice coil is wrapped around a high-power epoxy/glass fibre bobbin, which performs significantly better than standard materials at this price point, offering greater power handling, thermal stability, and structural strength.
25mm Textile Dome Tweeter
High frequencies are produced by a 25mm woven polyester dome with a high-loss damping coating, resulting in extended, smooth treble response. The front plate is designed acoustically with a flat profile and minimal waveguide to enhance dispersion and output. The result is clear, natural high frequencies with excellent off-axis performance.
High-Quality Crossover Components
Wharfedale’s engineers use a sophisticated Linkwitz-Riley crossover design, complete with air-core inductors—components typically found in high-end speakers. The crossover network is finely adjusted for minimal phase shift and smooth integration between drivers.
The magnet structure for the mid/bass driver is modified to address the resistance of these high-quality inductors, ensuring fast, clean bass without compromise.
Low-Resonance Cabinet Design
Each enclosure features a multi-layered sandwich construction that reduces panel resonance and distortion. Even the adhesive properties between the layers have been acoustically tested to optimise damping.
Inside, intelligent spot bracing connects opposite cabinet walls using computer-modelled braces that reduce vibration without passing it from one surface to another. This contributes to the solid and authoritative sound signature of the Diamond 12i series.
Specifications:
Model DIAMOND 12.4i
General Description 2.5-way floorstanding speaker
Design Philosophy and Core Technology
Enclosure Type bass reflex
Transducer Complement
ABR
Bass Driver 6.5" (150mm) advanced PP Cone
Midrange Driver 6.5" (150mm) advanced PP Cone
Treble Driver 1" 25mm) Textile Dome
Full-range Driver
AV Shield No
Sensitivity (2.83V @ 1m) 89dB
Recommended Amplifier Power 30-200W
Peak Power Handling
Peak SPL 102dB
Nominal Impedance 8Ω Compatible
Minimum Impedance 5.0Ω
Frequency Response (+/-3dB) 40Hz - 20kHz
Bass Extension (-6dB) 35Hz
Crossover Frequency 2.1kHz
Cabinet Volume (in litres) 40.8L
Dimensions ( H x W x D ) (1100+50) x 200 x (350+28)mm
Net Weight 22.4kg/pcs
Wharfedale Diamond 12.1i Bookshelf Speakers - Pair (Black)
Since its launch in 2020, the Wharfedale DIAMOND 12 Series has received widespread praise as a standard for performance and value in affordable hi-fi speakers. After over five years of consistent success, awards, and positive reviews from audio enthusiasts and critics alike, the DIAMOND 12 Series has established itself as one of the most enduring and best-selling speaker series.
Now, Wharfedale is excited to introduce the updated DIAMOND 12i Series. This new series features luxurious, modern finishes and subtle acoustic improvements that build on the strong foundation of the original design.
A Design Legacy — Now with a Contemporary Edge
The DIAMOND 12 Series raised the bar in its category for sound quality, design, and musical engagement. Today, Wharfedale’s in-house team has further developed the series, focusing not on reinventing but on refining and improving.
The series now includes three beautiful new finishes that complement modern interiors:
All-Black: A deep, rich semi-matte finish that offers a sleek, contemporary look—subtle and sophisticated.
Classic Walnut with Semi-Matte Black Baffle: A timeless classic reimagined, blending the natural warmth of walnut with a clean, contrasting baffle for a premium appearance.
Stone Grey: A striking modern option that suits minimalist styles and stands out.
More Than Skin Deep
Known for quality, affordability, and exceptional build quality, the Wharfedale Diamond series has always prioritised fit and finish. The new luxurious finishes enhance the loudspeaker’s premium look and feel, matching its impressive sound performance.
Incremental Acoustic Enhancements
Along with the aesthetic upgrade, Wharfedale’s engineering team revisited the speaker’s internals, paying special attention to bass port tuning and airflow control. Small but significant changes to the port design and internal damping have improved bass clarity and low-frequency control—especially in real-world environments. Listeners will notice the difference.
A thorough port design effort led by Wharfedale’s Director of Acoustic Design, Peter Comeau, and senior engineers Dan Bailey Ornellas and Oliver Davies aimed to refine low-frequency performance through extensive empirical testing and listening evaluations. The development process lasted several months and included advanced techniques, such as laser interferometry, extensive anechoic and in-room measurements, and computational fluid dynamics (CFD) to assess airflow and pressure in the port structure. Critical listening sessions—totalling hundreds of hours—were held to confirm the results. The outcome is a bass response that is better controlled and more articulate, with improved transitions between low and mid frequencies and consistent spatial performance, no matter the placement. These changes maintain the DIAMOND 12’s signature neutrality while subtly increasing listener engagement and dynamic flow.
At the Core: Klarity™ Cone Technology
The DIAMOND 12i mid/bass driver cones remain unchanged and are made from Klarity™, a special blend of polypropylene and mica that provides excellent stiffness and low distortion. This results in a cone that is lightweight, well-damped, and very responsive, delivering natural, expressive dynamics and precise transient response.
A low-damping surround enhances the cone’s efficiency and dynamic range, while ribbed shaping and profile simulation ensure a smooth, linear frequency response without added distortion.
Advanced Magnet Assembly
Each mid/bass driver features a precise magnet system with an aluminium compensation ring to reduce the effects of inductance changes as the voice coil moves. This advanced motor system minimises intermodulation and distortion, producing cleaner, more accurate sound.
The voice coil is wrapped around a high-power epoxy/glass fibre bobbin, which performs significantly better than standard materials at this price point, offering greater power handling, thermal stability, and structural strength.
25mm Textile Dome Tweeter
High frequencies are produced by a 25mm woven polyester dome with a high-loss damping coating, resulting in extended, smooth treble response. The front plate is designed acoustically with a flat profile and minimal waveguide to enhance dispersion and output. The result is clear, natural high frequencies with excellent off-axis performance.
High-Quality Crossover Components
Wharfedale’s engineers use a sophisticated Linkwitz-Riley crossover design, complete with air-core inductors—components typically found in high-end speakers. The crossover network is finely adjusted for minimal phase shift and smooth integration between drivers.
The magnet structure for the mid/bass driver is modified to address the resistance of these high-quality inductors, ensuring fast, clean bass without compromise.
Low-Resonance Cabinet Design
Each enclosure features a multi-layered sandwich construction that reduces panel resonance and distortion. Even the adhesive properties between the layers have been acoustically tested to optimise damping.
Inside, intelligent spot bracing connects opposite cabinet walls using computer-modelled braces that reduce vibration without passing it from one surface to another. This contributes to the solid and authoritative sound signature of the Diamond 12i series.
Preserve the Essence, Perfect the Experience
Overall, the new DIAMOND 12i series is sure to impress. The changes may seem minor, but the impact is significant. It looks, feels, and performs like something new because it is. Yet, it still retains all of the qualities that made the original iteration so special!
Specifications:
Model DIAMOND 12.1i
General Description 2-way bookshelf speaker
Design Philosophy and Core Technology
Enclosure Type bass reflex
Transducer Complement 2-way
ABR
Bass Driver 5" (130mm) advanced PP Cone
Midrange Driver
Treble Driver 1" (25mm) Textile Dome
Full-range Driver
AV Shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended Amplifier Power 20-100W
Peak Power Handling
Peak SPL 96dB
Nominal Impedance 8Ω Compatible
Minimum Impedance 4.0Ω
Frequency Response (+/-3dB) 65Hz - 20kHz
Bass Extension (-6dB) 60Hz
Crossover Frequency 2.6kHz
Cabinet Volume (in litres) 8.2L
Dimensions ( H x W x D ) 312 x 180 x (250+28)mm
Net Weight 6.8kg/pcs
Wharfedale Diamond 12.Ci Center Channel Speaker - Each (Black)
Since its launch in 2020, the Wharfedale DIAMOND 12 Series has received widespread praise as a standard for performance and value in affordable hi-fi speakers. After over five years of consistent success, awards, and positive reviews from audio enthusiasts and critics alike, the DIAMOND 12 Series has established itself as one of the most enduring and best-selling speaker series.
Now, Wharfedale is excited to introduce the updated DIAMOND 12i Series. This new series features luxurious, modern finishes and subtle acoustic improvements that build on the strong foundation of the original design.
A Design Legacy — Now with a Contemporary Edge
The DIAMOND 12 Series raised the bar in its category for sound quality, design, and musical engagement. Today, Wharfedale’s in-house team has further developed the series, focusing not on reinventing but on refining and improving.
The series now includes three beautiful new finishes that complement modern interiors:
All-Black: A deep, rich semi-matte finish that offers a sleek, contemporary look—subtle and sophisticated.
Classic Walnut with Semi-Matte Black Baffle: A timeless classic reimagined, blending the natural warmth of walnut with a clean, contrasting baffle for a premium appearance.
Stone Grey: A striking modern option that suits minimalist styles and stands out.
More Than Skin Deep
Known for quality, affordability, and exceptional build quality, the Wharfedale Diamond series has always prioritised fit and finish. The new luxurious finishes enhance the loudspeaker’s premium look and feel, matching its impressive sound performance.
Incremental Acoustic Enhancements
Along with the aesthetic upgrade, Wharfedale’s engineering team revisited the speaker’s internals, paying special attention to bass port tuning and airflow control. Small but significant changes to the port design and internal damping have improved bass clarity and low-frequency control—especially in real-world environments. Listeners will notice the difference.
A thorough port design effort led by Wharfedale’s Director of Acoustic Design, Peter Comeau, and senior engineers Dan Bailey Ornellas and Oliver Davies aimed to refine low-frequency performance through extensive empirical testing and listening evaluations. The development process lasted several months and included advanced techniques, such as laser interferometry, extensive anechoic and in-room measurements, and computational fluid dynamics (CFD) to assess airflow and pressure in the port structure. Critical listening sessions—totalling hundreds of hours—were held to confirm the results. The outcome is a bass response that is better controlled and more articulate, with improved transitions between low and mid frequencies and consistent spatial performance, no matter the placement. These changes maintain the DIAMOND 12’s signature neutrality while subtly increasing listener engagement and dynamic flow.
At the Core: Klarity™ Cone Technology
The DIAMOND 12i mid/bass driver cones remain unchanged and are made from Klarity™, a special blend of polypropylene and mica that provides excellent stiffness and low distortion. This results in a cone that is lightweight, well-damped, and very responsive, delivering natural, expressive dynamics and precise transient response.
A low-damping surround enhances the cone’s efficiency and dynamic range, while ribbed shaping and profile simulation ensure a smooth, linear frequency response without added distortion.
Advanced Magnet Assembly
Each mid/bass driver features a precise magnet system with an aluminium compensation ring to reduce the effects of inductance changes as the voice coil moves. This advanced motor system minimises intermodulation and distortion, producing cleaner, more accurate sound.
The voice coil is wrapped around a high-power epoxy/glass fibre bobbin, which performs significantly better than standard materials at this price point, offering greater power handling, thermal stability, and structural strength.
25mm Textile Dome Tweeter
High frequencies are produced by a 25mm woven polyester dome with a high-loss damping coating, resulting in extended, smooth treble response. The front plate is designed acoustically with a flat profile and minimal waveguide to enhance dispersion and output. The result is clear, natural high frequencies with excellent off-axis performance.
High-Quality Crossover Components
Wharfedale’s engineers use a sophisticated Linkwitz-Riley crossover design, complete with air-core inductors—components typically found in high-end speakers. The crossover network is finely adjusted for minimal phase shift and smooth integration between drivers.
The magnet structure for the mid/bass driver is modified to address the resistance of these high-quality inductors, ensuring fast, clean bass without compromise.
Low-Resonance Cabinet Design
Each enclosure features a multi-layered sandwich construction that reduces panel resonance and distortion. Even the adhesive properties between the layers have been acoustically tested to optimise damping.
Inside, intelligent spot bracing connects opposite cabinet walls using computer-modelled braces that reduce vibration without passing it from one surface to another. This contributes to the solid and authoritative sound signature of the Diamond 12i series.
Specifications:
Model DIAMOND 12.Ci
General Description 2-way centre speaker
Design Philosophy and Core Technology
Enclosure Type closed-box system
Transducer Complement 2-way
ABR
Bass Driver 5" (130mm) advanced PP Cone x2
Midrange Driver
Treble Driver 1" (25mm) Textile Dome
Full-range Driver
AV Shield No
Sensitivity (2.83V @ 1m) 90dB
Recommended Amplifier Power 20-120W
Peak Power Handling
Peak SPL 96dB
Nominal Impedance 8Ω Compatible
Minimum Impedance 4.0Ω
Frequency Response (+/-3dB) 90Hz - 20kHz
Bass Extension (-6dB) 80Hz
Crossover Frequency 2.2kHz
Cabinet Volume (in litres) 8.7L
Dimensions ( H x W x D ) 180 x 480 x (180+28)mm
Net Weight 8.5kg/pcs

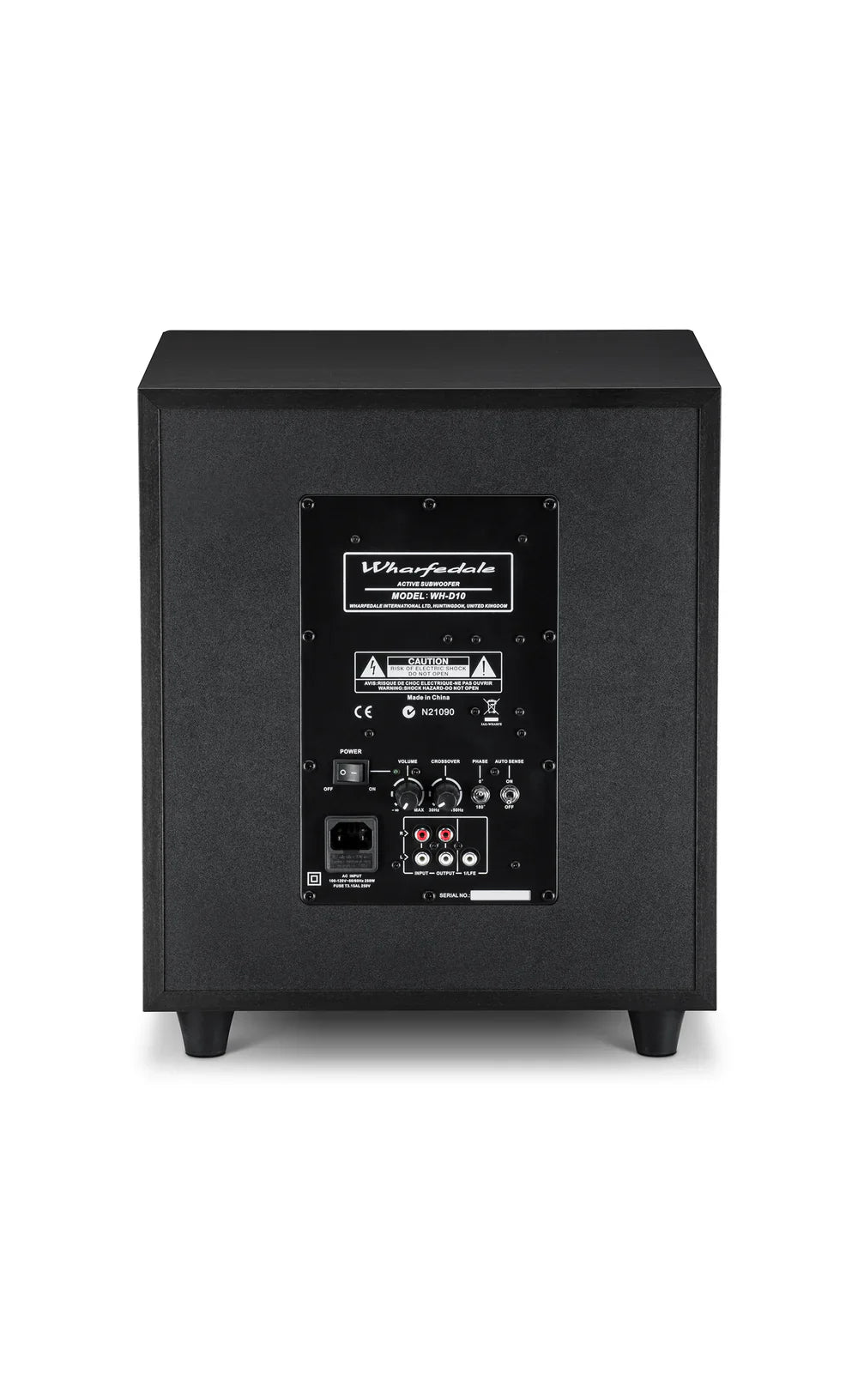

Wharfedale WH-D10 Subwoofer - Each - Black
The D8 and D10 subwoofers are the perfect way of enhancing your stereo or home system to produce an excellent low-end performance. The cabinet construction of the new D10 has been aesthetically enhanced, with new high-gloss lacquered front baffles and cosmetically enhanced veneers. Not only is this a significant improvement, but the new look is also designed to match perfectly with the new and award-winning Diamond 200 series, which is already gaining outstanding reviews internationally.
Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D10 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and intensive bass response. The D10 also employs a custom designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.
Key Features
- Low pass filter slope continuously adjustable from 40Hz – 150Hz
- Phase invert switch
- Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
- Low-level inputs, dedicated LFE input
- Auto power sensor
Specifications:
Description/Format Active Dynamic-Drive IB subwoofer system
Drive Units 1 x 10" (250mm) cone long-throw
Frequency Response (+/-3dB) 35Hz - 150Hz
Amplifier Power Output 150W
Peak Power Output 300W
Line Input Sensitivity 100mV for maximum output
Crossover Range 30Hz - 150Hz
Inputs Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance Line In 10kOhms
LFE 5kOhms
Signal-to-noise ratio >85dB
Avg. Max Output @1m 110dB
Features Low pass filter slope adjustment
Phase inversion
Auto on/off
High pass output
Dimensions 363 (+30) x 333 x 372 (+22)
Net Weight 14kg
Gross Weight 16.5kg
Accessories IEC power cord, spikes as standard
