Wharfedale Evo 5.3 Home Theatre System (Grey) + Yamaha RX-V6A AV Receiver (Black)
Couldn't load pickup availability

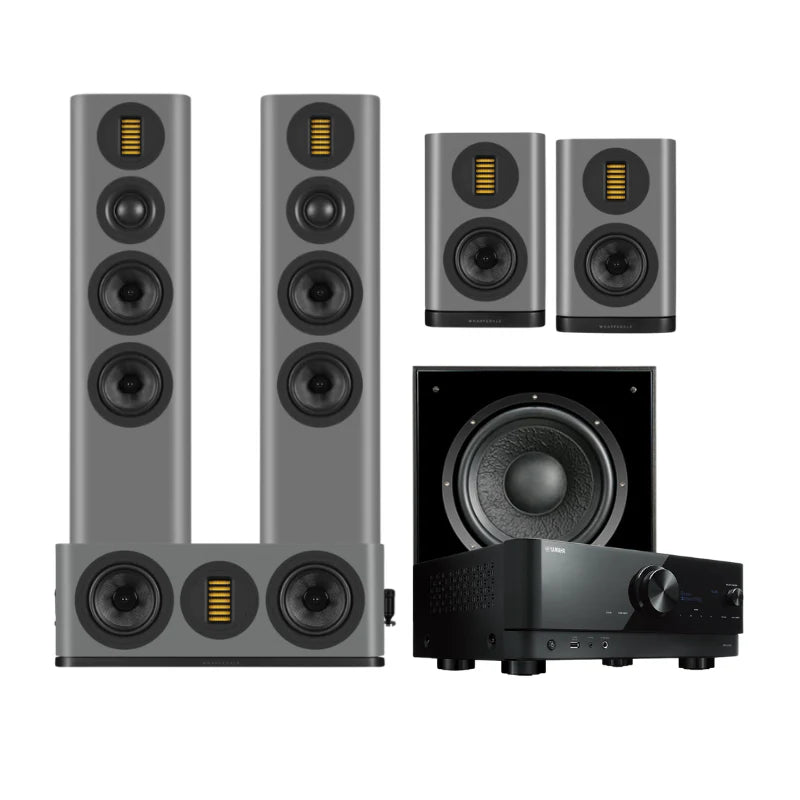

Wharfedale Evo 5.3 Home Theatre System (Grey) + Yamaha RX-V6A AV Receiver (Black)
This Package Includes:
- Wharfedale EVO 5.3 Floorstanding Speakers - Pair (Grey)
- Wharfedale EVO 5.C Center Channel Speaker - Each (Grey)
- Wharfedale EVO 5.1 Bookshelf Speakers - Pair (Grey)
- Wharfedale SW-12 300W Subwoofer - Each (Black)
- Yamaha RX-V6A 7.2-Channel AV Receiver with 8K HDMI and MusicCast (Black)

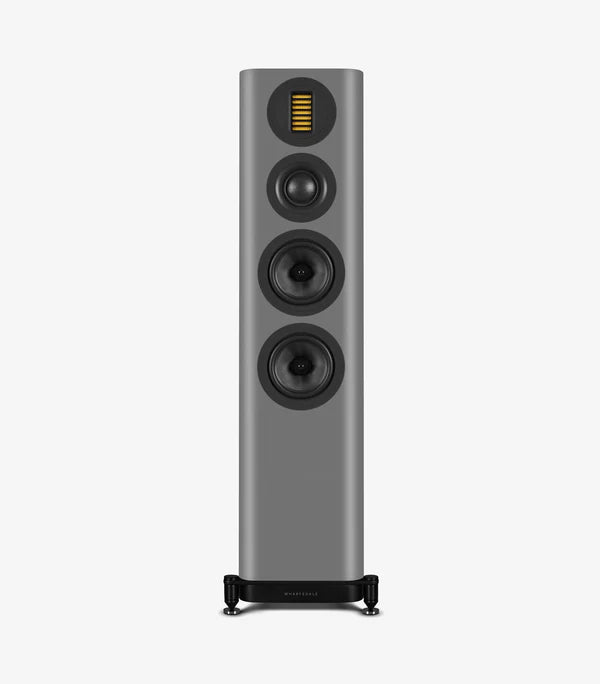

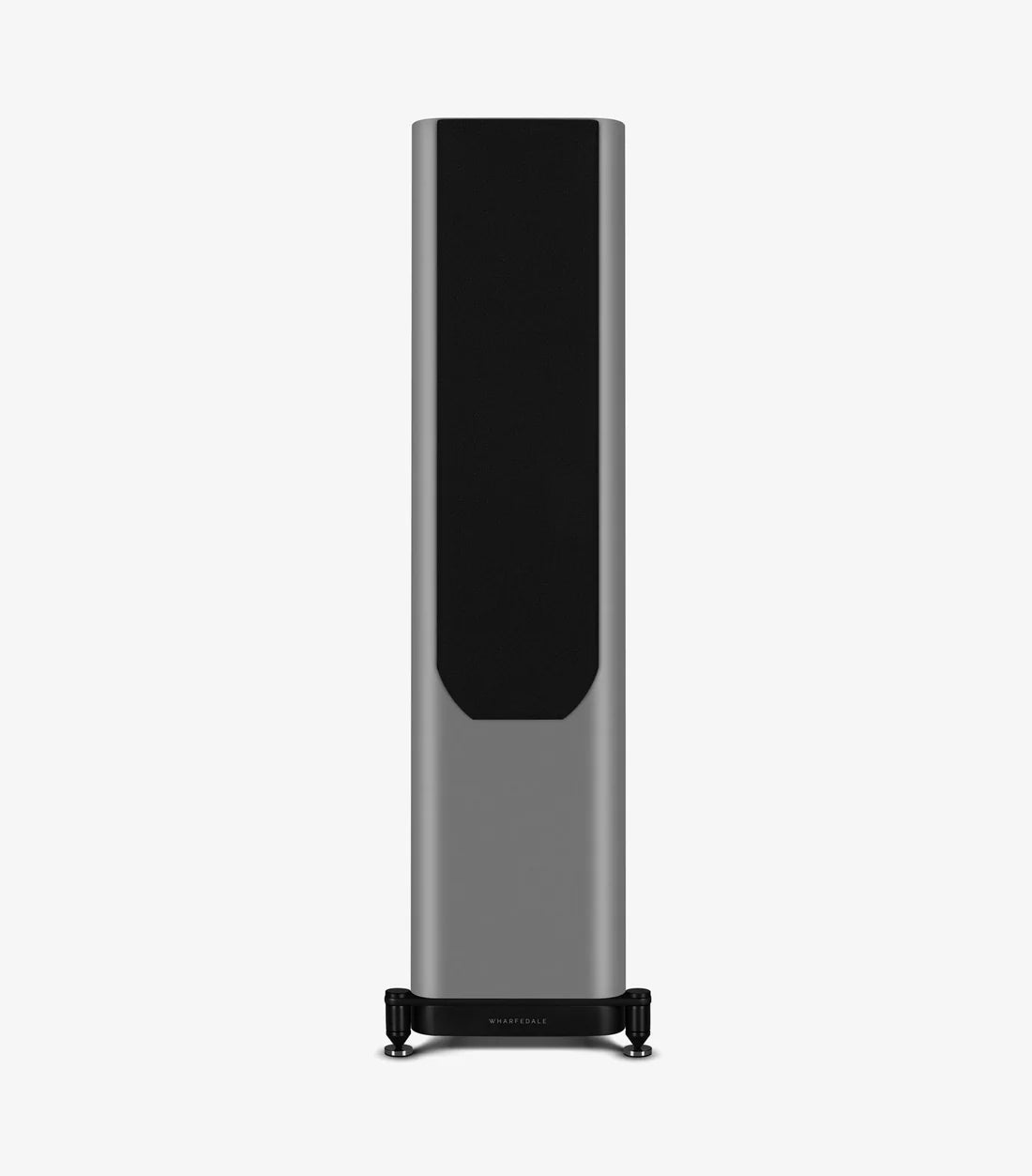

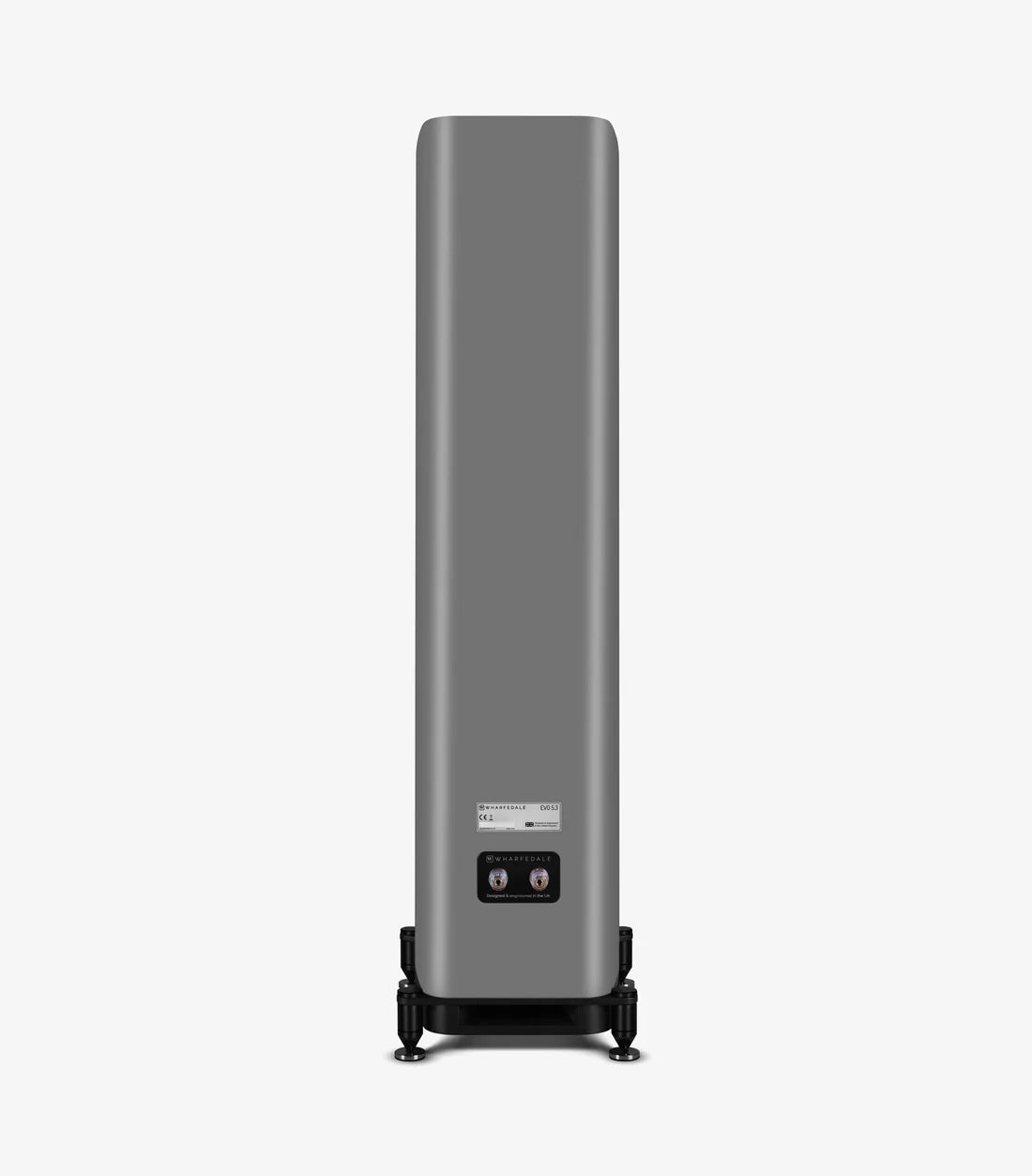

Wharfedale EVO 5.3 Floorstanding Speakers - Pair (Grey)
High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.
A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.
Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and effcient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.
The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.
All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.
These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.
Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.
Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.
The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.
Next-Generation Slot-Loaded Port Design
Wharfedale’s proprietary Slot Loaded Profiled Port (SLPP) system effciently channels the rear output of the bass drivers into the room. The specially designed slot at the speaker's base equalises pressure to the room, reducing turbulence while enhancing low-frequency performance.
Specifications:
Model EVO 5.3
General description 3-way floorstanding speaker
Design philosophy and core technology
Enclosure type bass reflex
Transducer complement 3-way
ABR
Bass driver 5"(130mm) Black Woven Kevlar Cone x2
Midrange driver 2"(50mm) Soft Dome
Treble driver 35 x 70mm AMT
Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended amplifier power 25-150W
Peak power handling
Peak SPL 106dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 3.5Ω
Frequency response (+/-3dB) 46Hz – 24kHz
Bass extension (-6dB) 40Hz
Crossover frequency 825 Hz,4kHz
Cabinet Volume (in litres) 35.4L
Dimensions (mm)
Height (on plinth&spike) 933mm
Width 266mm
Depth (with grille+terminal) (285 + 40)mm
Carton size 430 * 350 * 1055mm
Net weight 21.5kg/pcs
Gross weight 23.0kg/ctn
Finish Walnut/Black Oak Veneer
Standard accessories spike seat

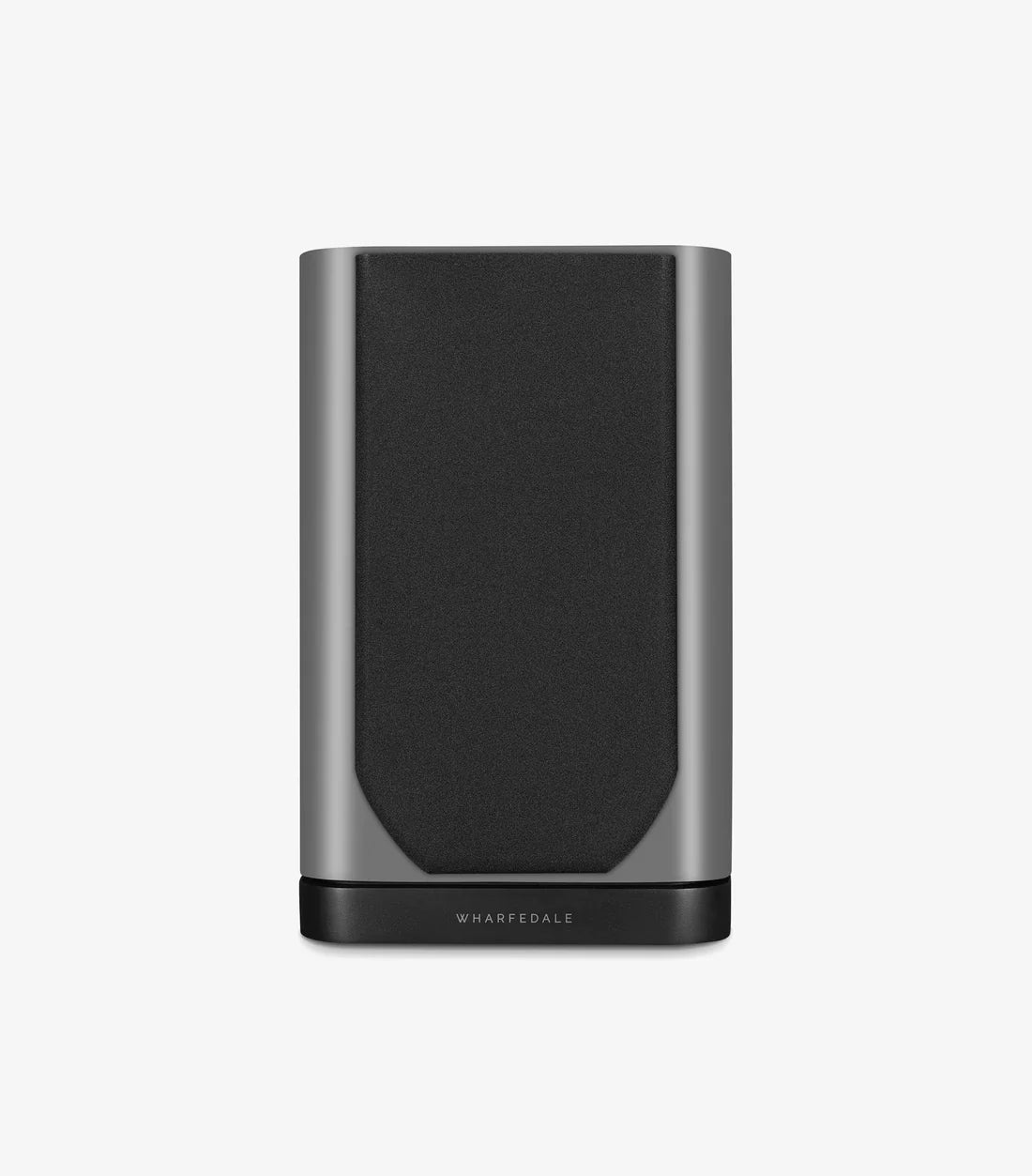

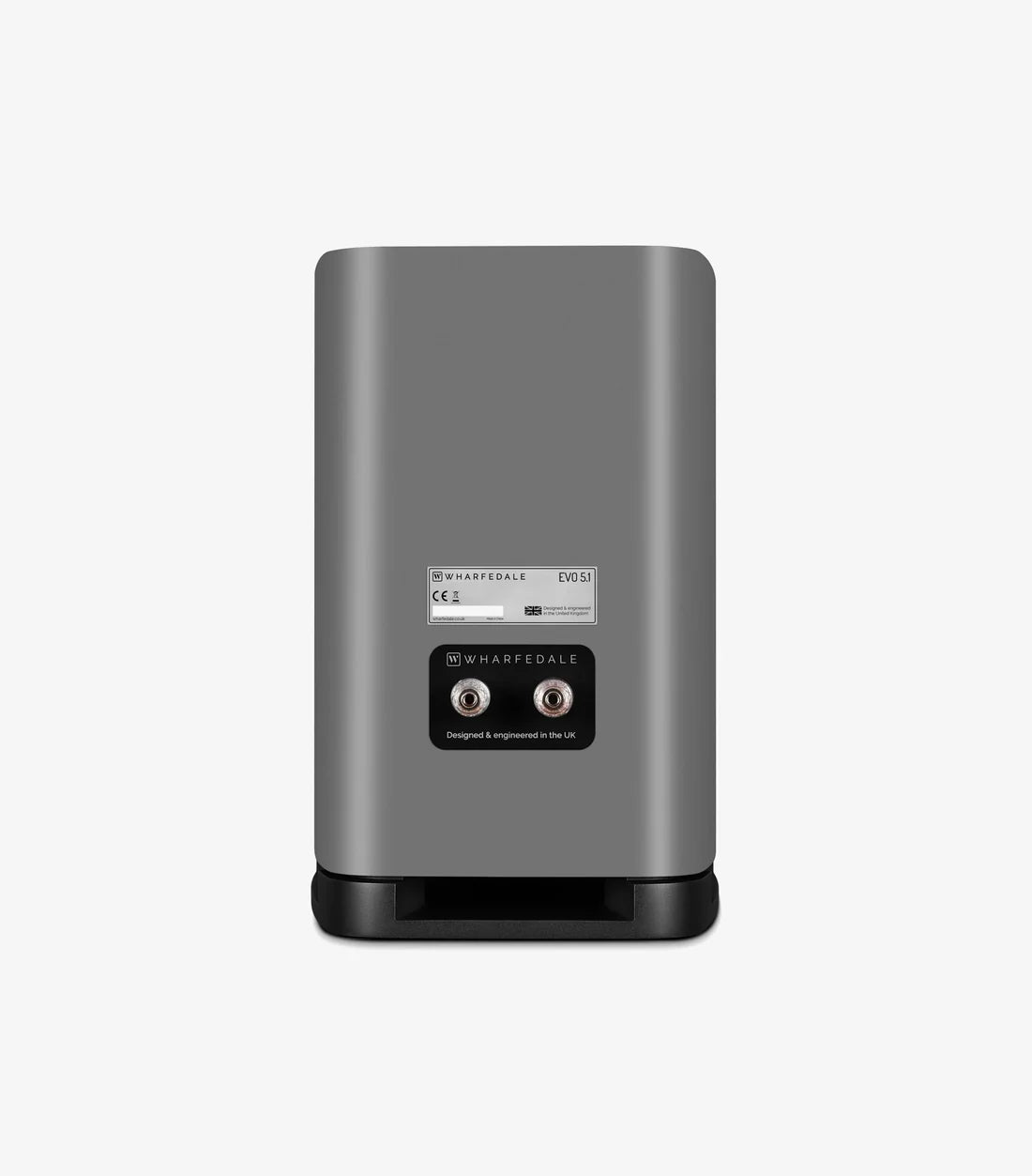

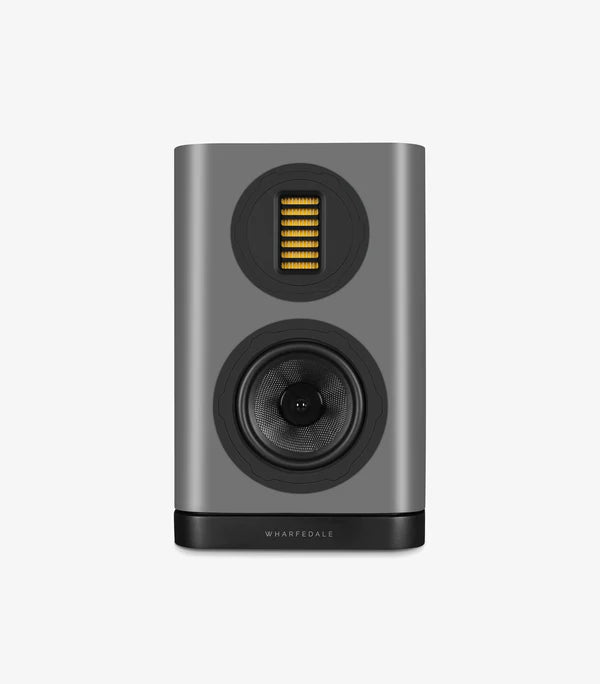

Wharfedale EVO 5.1 Bookshelf Speakers - Pair (Grey)
High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.
A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.
Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and eficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.
The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.
All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.
These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.
Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.
Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.
The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts
EVO 5 Stands
For the EVO 5.1 and EVO 5.2 loudspeakers, specially designed stands are offered to ensure the perfect synergy between form and function. Crafted from high-carbon steel, these stands provide exceptional strength and stability while effectively minimising unwanted vibrations and interactions with floor surfaces that could compromise sound quality.
Engineered with precision, they position the loudspeakers at the ideal listening height, ensuring an immersive and well-balanced audio experience across various seating positions. Their understated yet elegant design seamlessly complements the aesthetic of the EVO 5 series, maintaining the refined and sophisticated appeal of the speakers themselves.
Beyond aesthetics, these stands enhance overall performance by also aiding perfect speaker placement, allowing the EVO 5.1 and EVO 5.2 to deliver their full sonic potential with clarity, depth, and precision for audiophiles and design-conscious listeners alike.
Specifications:
Model EVO 5.1
General description 2-way bookshelf speaker
Design philosophy and core technology
Enclosure type bass reflex
Transducer complement 2-way
ABR
Bass driver 5"(130mm) Black Woven Kevlar Cone
Midrange driver
Treble driver 35 x 70mm AMT
Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 87dB
Recommended amplifier power 25-100W
Peak power handling
Peak SPL 98dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 3.4Ω
Frequency response (+/-3dB) 56Hz – 24kHz
Bass extension (-6dB) 46Hz
Crossover frequency 2.7kHz
Cabinet Volume (in litres) 11.5L
Dimensions (mm)
Height (on plinth) 340mm
Width 220mm
Depth (with grille+terminal) (285 + 40)mm
Carton size 610 * 415 * 455mm
Net weight 8.0kg/pcs
Gross weight 20.5kg/ctn
Finish Walnut/Black Oak Veneer
Standard accessories rubber feet

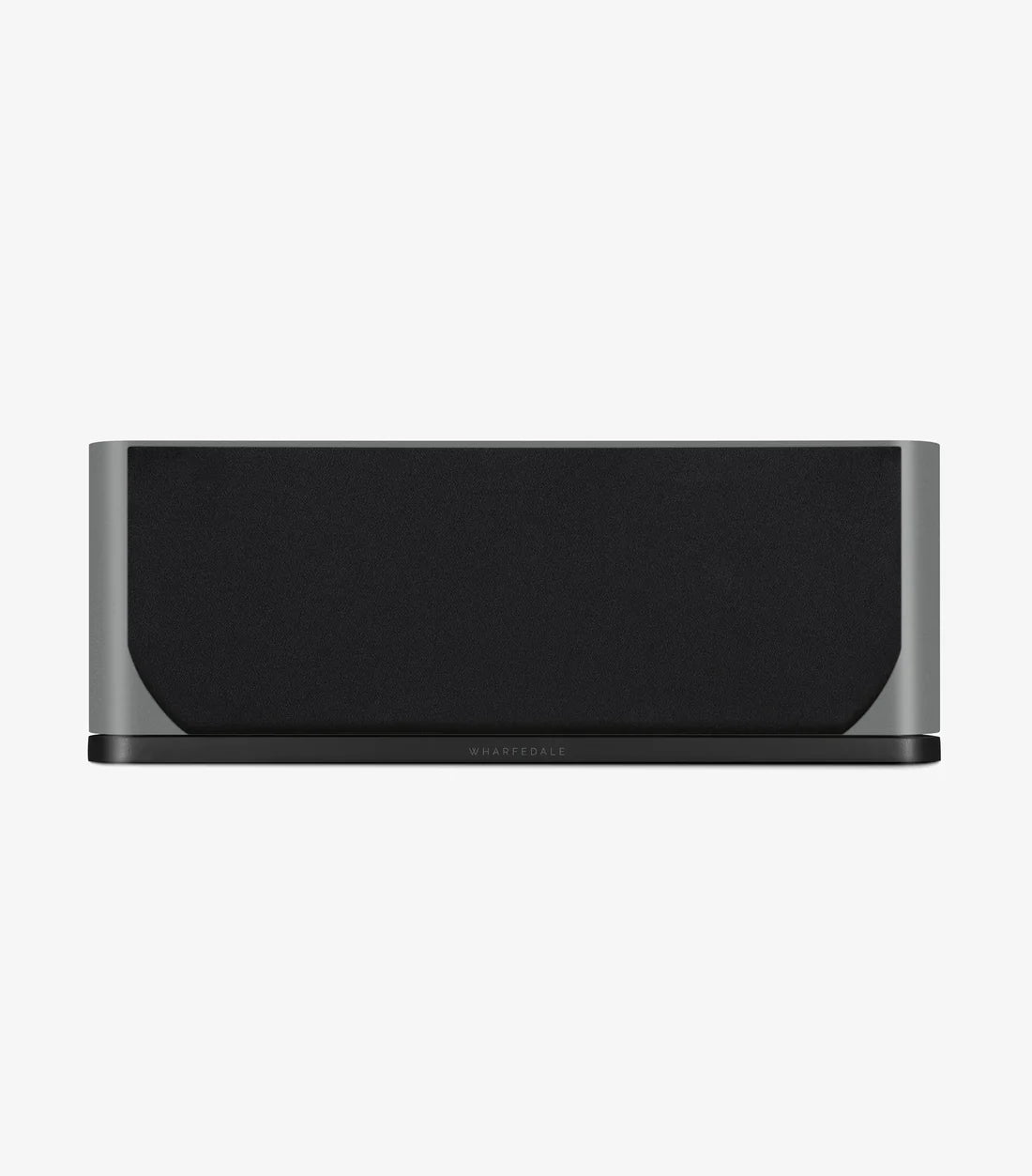

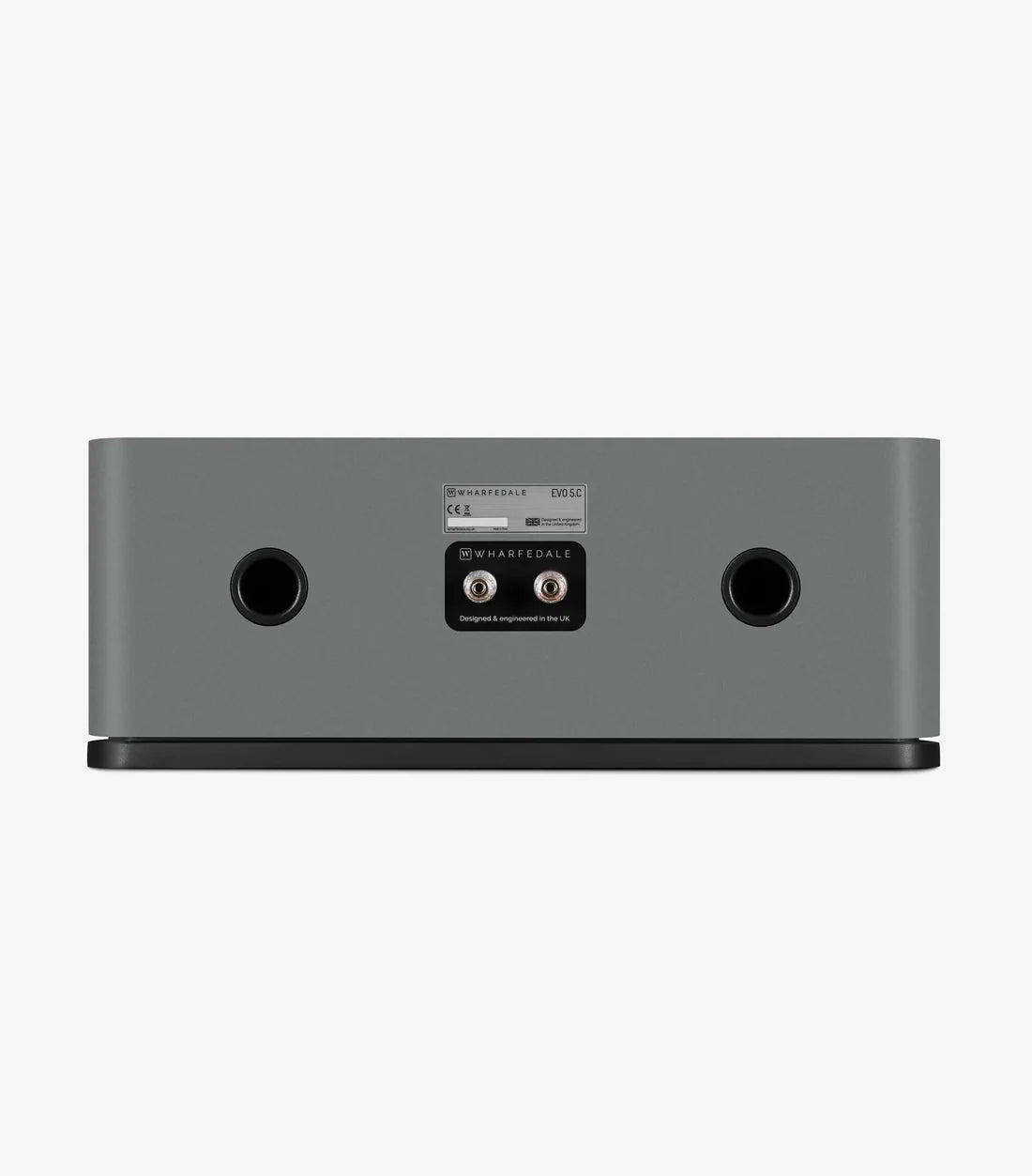

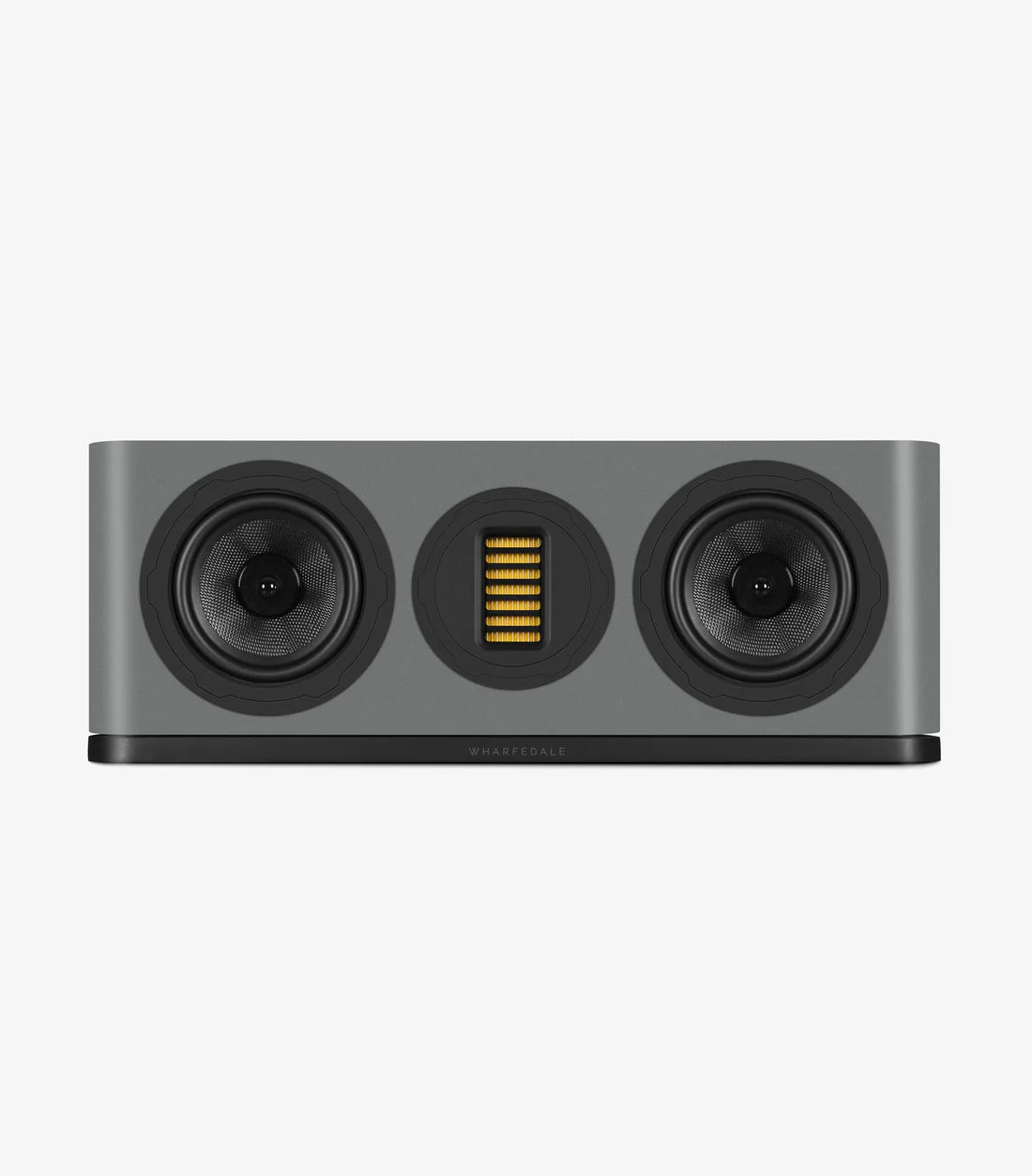

Wharfedale EVO 5.C Center Channel Speaker - Each (Grey)
High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.
A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.
Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and eficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.
The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.
All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.
These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.
Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.
Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.
The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.
Specifications:
Model EVO 5.C
General description 2-way centre speaker
Design philosophy and core technology
Enclosure type bass reflex
Transducer complement 2-way
ABR
Bass driver 5"(130mm) Black Woven Kevlar Cone x2
Midrange driver
Treble driver 35 x 70mm AMT
Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 89dB
Recommended amplifier power 25 – 120W
Peak power handling
Peak SPL 103dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 4.1Ω
Frequency response (+/-3dB) 56Hz – 24kHz
Bass extension (-6dB) 49Hz
Crossover frequency 2.3kHz
Cabinet Volume (in litres) 14L
Dimensions (mm)
Height (on plinth) 188mm
Width 520mm
Depth (with grill) (265 + 40)mm
Carton size 635 * 395 * 305mm
Net weight 12.5kg/pcs
Gross weight 14.3kg/ctn
Finish Walnut/Black Oak Oak Veneer
Standard accessories rubber feet

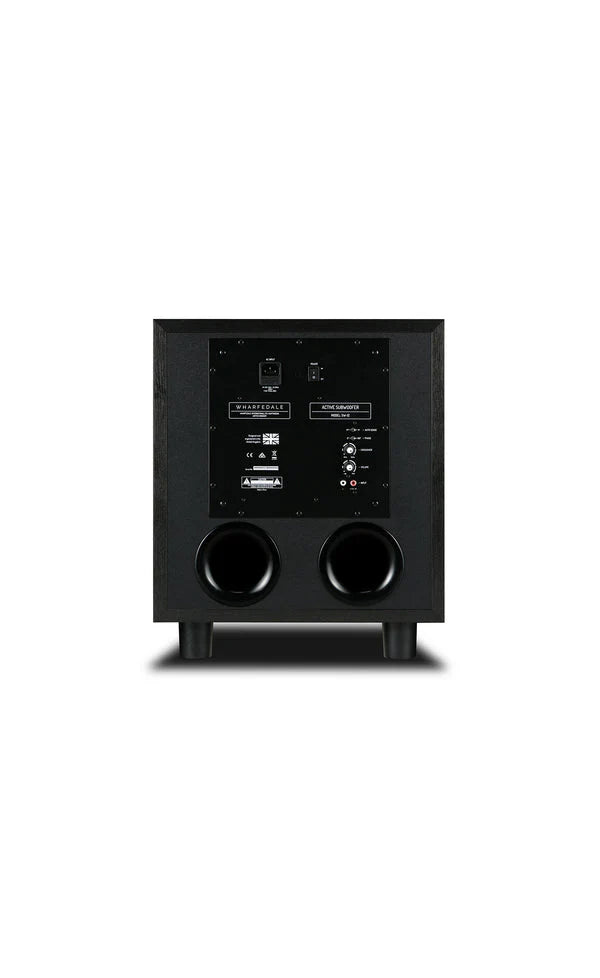

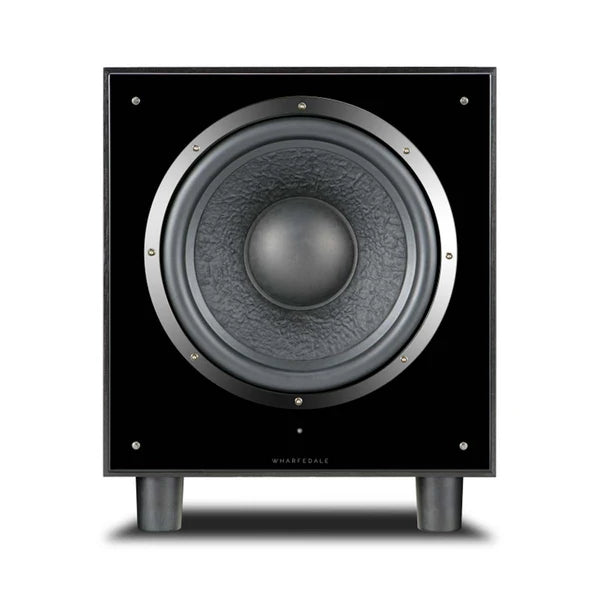

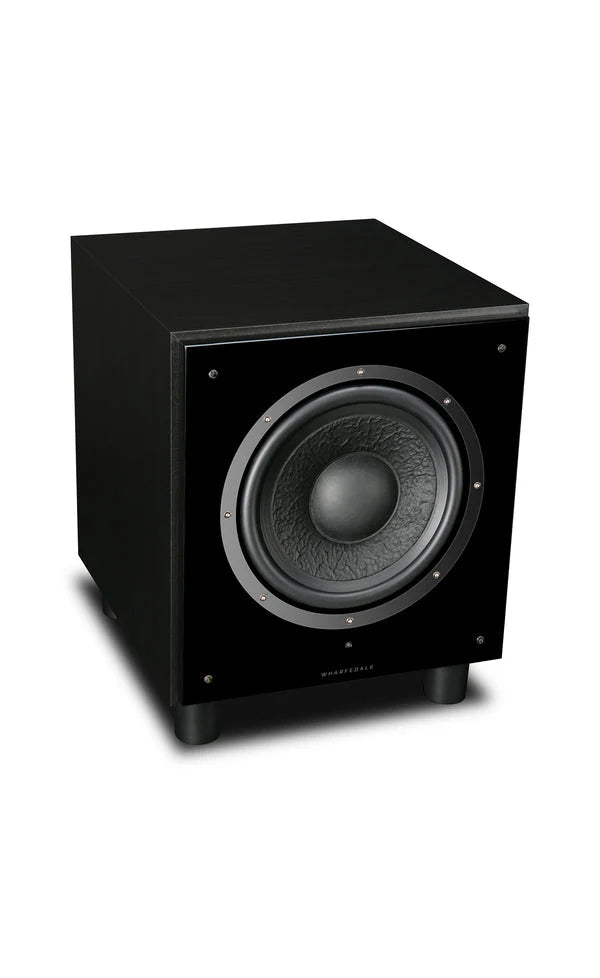

Wharfedale SW-12 300W Subwoofer - each - Black
The Wharfedale SW series subwoofers offer a level of performance previously unheard of in their price class. Every model features sophisticated drive units, powerful amplifiers, and complex filter stages (crossovers). Wharfedale SW series strikes the perfect balance between high impact and sound quality, offering exceptional sound pressure levels yet retaining the transient control to qualify as genuine audiophile music speakers.
SW subwoofers come with a host of features, such as non-pressed paper cones to increase the structural rigidity, as well as increased self-damping, and improved transient impact. The centre voice coil vents are copper lined to reduce magnetic distortion and improve heat dissipation.
A continuously variable crossover control (30Hz – 150Hz), Phase switch, and Volume control make it easy to contour the subwoofer to blend seamlessly with Wharfedale's main speakers. The Auto Sense feature allows the sub power to automatically enter and exit standby to save power during idle periods.
The SW subwoofers use reliable, well-engineered power amplifiers and are optimised for high impact at low frequencies, and are ideal for home cinema and music.
Specifications
Drive Units: 1 x (12”)300mm cone long-throw
Frequency Response: 35- 120Hz ±3dB
Amplifier Power Output: 300W
Peak Power Output: 450W
Line Input Sensitivity: 200mv for maximum output
Crossover Range: 30 - 150Hz
Inputs: Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance: Line Input 10kΩ LFE 5kΩ
Signal-to-noise ratio (S/N): ≥85dB
Avg. Max Output @1m: 118B
Features: Phase inversion, Auto on-off
Dimensions (HxWxD): 19.2" x 15.6" x 18.0"
Net weight: 48.7 lbs.
Accessories: IEC Power cord

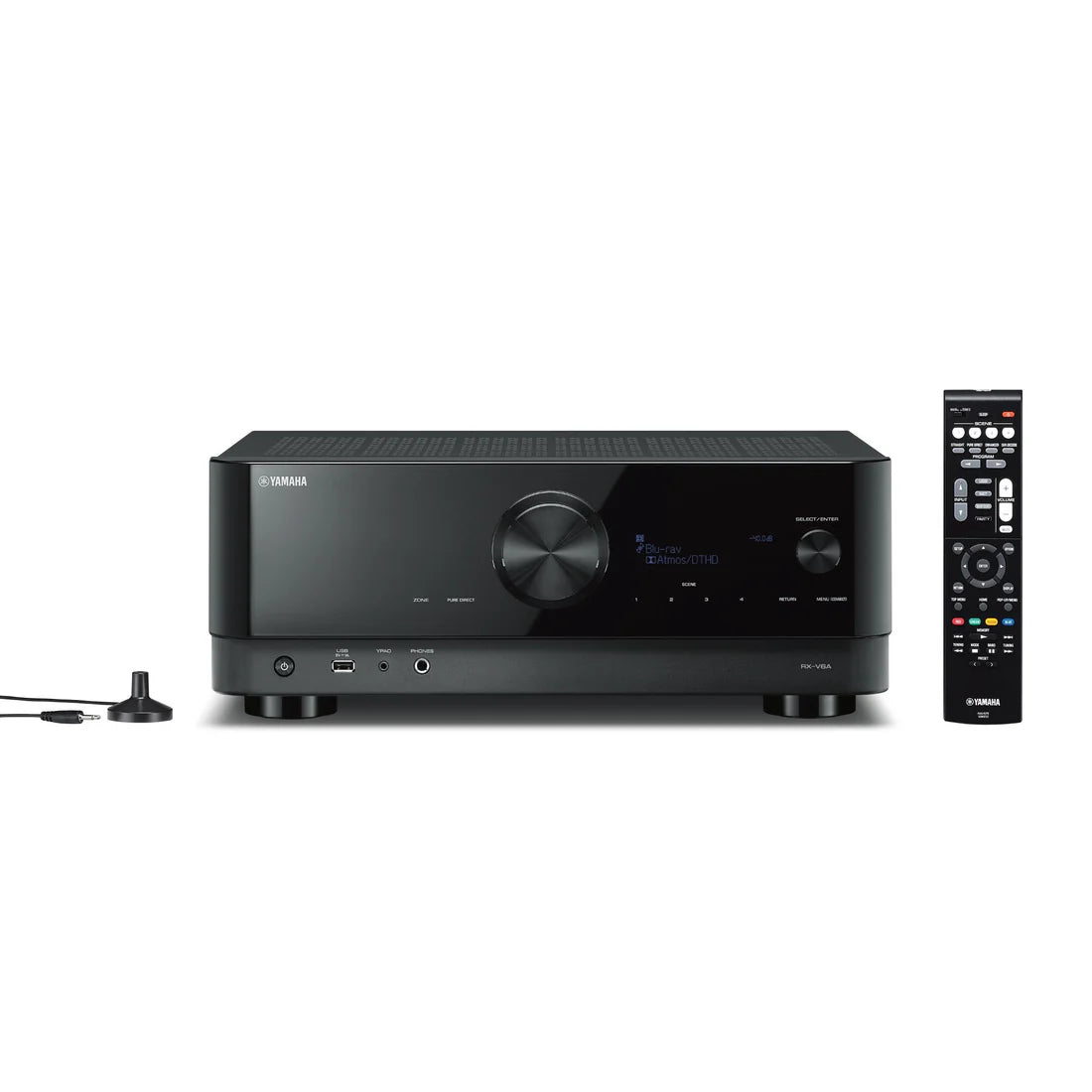

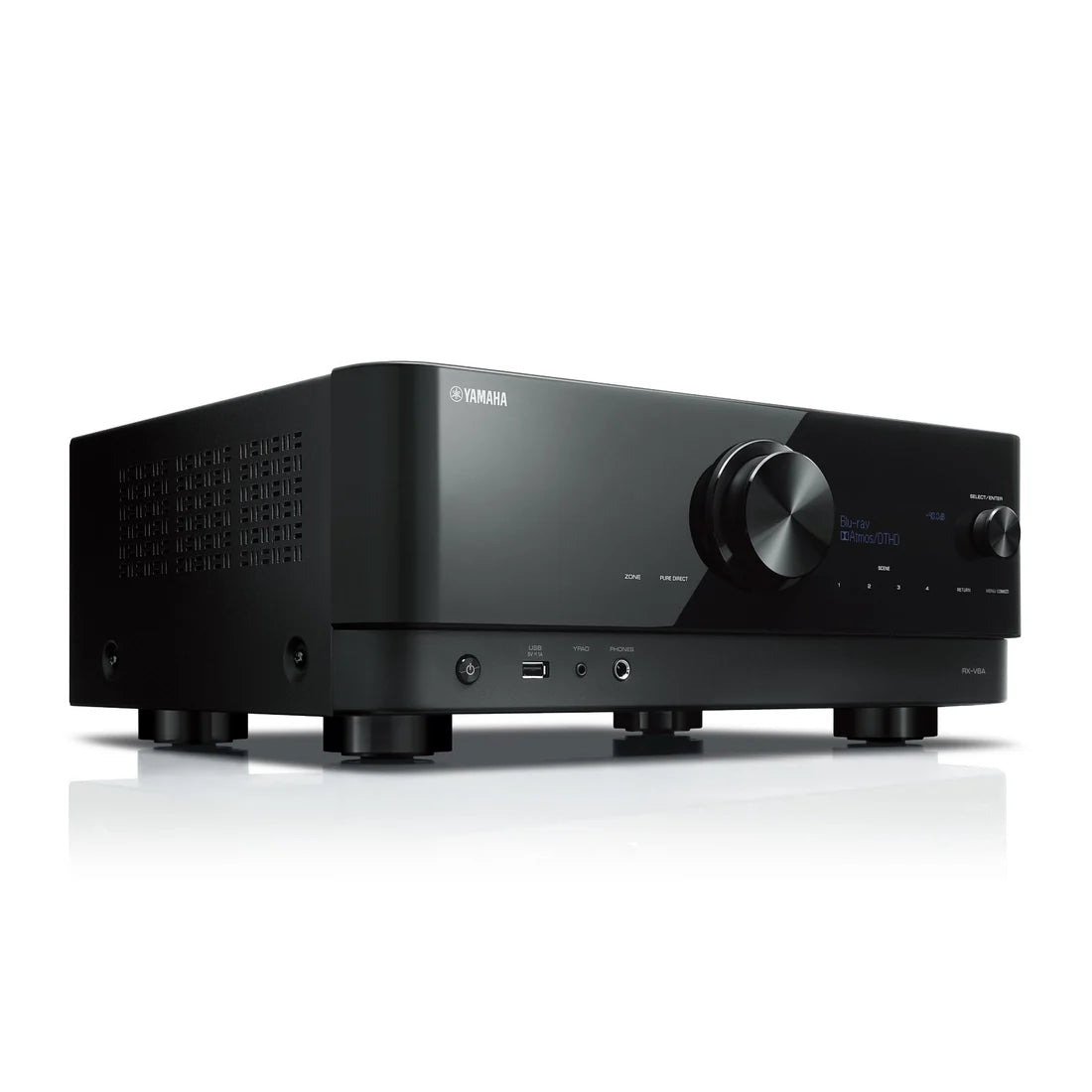

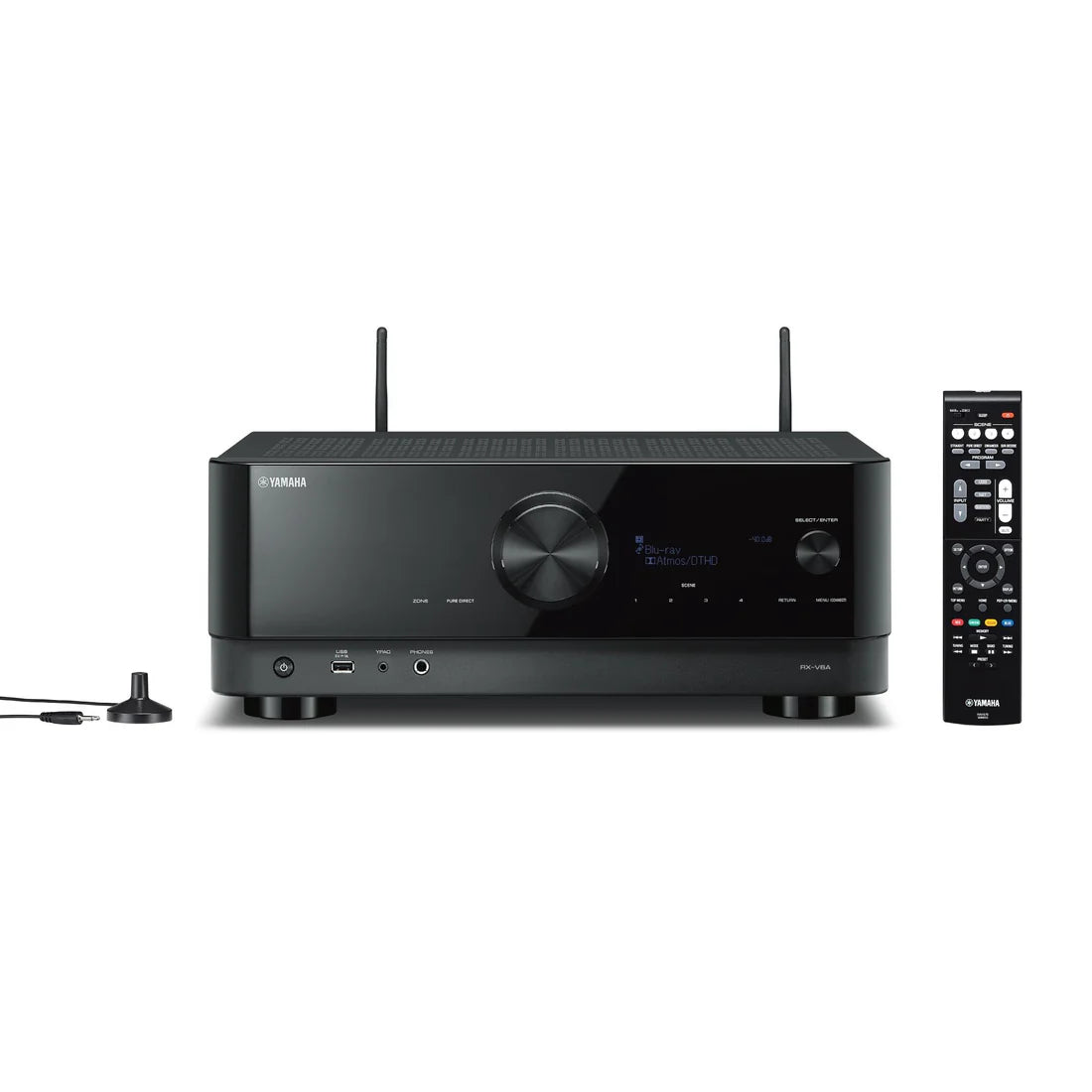

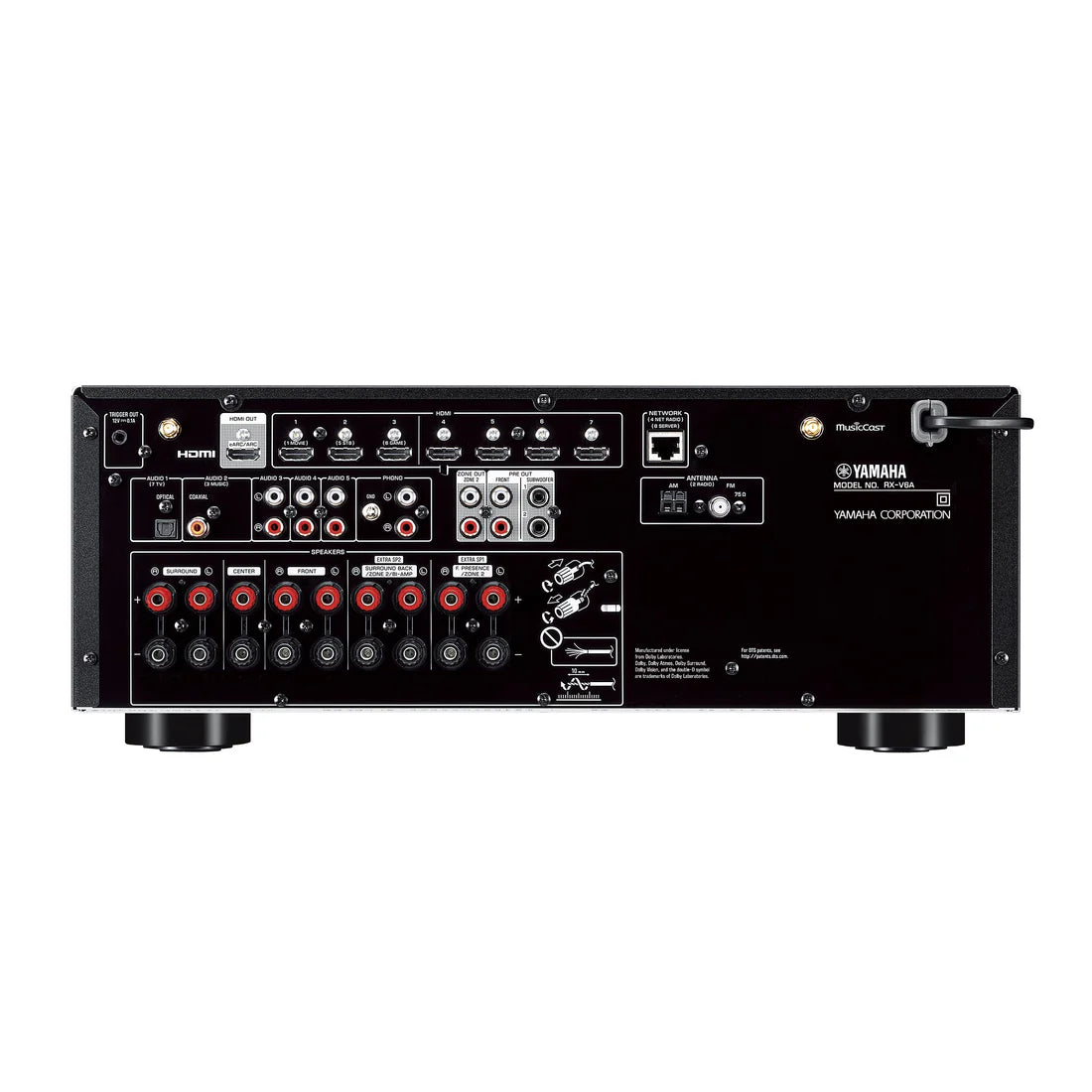

Yamaha RX-V6A 7.2-Channel AV Receiver with 8K HDMI and MusicCast
This 7.2-channel, 100 Watt AV receiver boldly explores entertainment possibilities for an advanced home theater with the latest in video and audio, including Dolby Atmos®, Dolby Atmos Height Virtualization and DTS:X™ wireless streaming and more.
- 7.2-channel 100 Watt surround sound with Zone 2
- 4K120AB and 8K60B HDMI with HDCP 2.3 and eARC (7 in/1 out)
- Dolby Vision™, Hybrid Log-Gamma and BT.2020
- Supports enhanced media and gaming – ALLM and VRR
- Dolby Atmos®, DTS:X™ and Dolby Atmos Height Virtualization
- Wi-Fi®, AirPlay 2®, Spotify Connect and Voice Control
- MusicCast App control
- Pandora®, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer, Napster and more
- YPAO automatic room calibration with R.S.C. and multipoint
- Phono input
Dolby Atmos® and Dolby Atmos Height Virtualization
Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
DTS:X®
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.
CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
TRUE SOUND
Make every night movie night. In fact, feel like you've entered the story. The Yamaha approach to tonal balance delivers incredibly detailed and accurate timbre in each voicing. Dynamism is found in the emotive contrast between the stillness and motion in the movie. The urgency and suspense between action scenes is palpable through the sound field that is created.
Specifications:
| Amplifier Section | Channels | 7.2 | |
|---|---|---|---|
| Rated Output Power (20Hz-20kHz, 2ch driven) | 100 W (8 ohms, 0.06% THD) | ||
| High Slew Rate Amplifier | Yes | ||
| Surround Sound Processing | Cinema DSP | Yes | |
| DSP Programs | 17 | ||
| Dialog Level Adjustment | Yes | ||
| Virtual Presence Speaker | Yes | ||
| Virtual Surround Back Speaker | Yes | ||
| Dialogue Lift | Yes | ||
| SILENT Cinema / Virtual Cinema DSP | Yes | ||
| Dolby Atmos | Yes | ||
| Dolby Atmos Height Virtualization | Yes (via future update) | ||
| Dolby TrueHD | Yes | ||
| Dolby Digital Plus | Yes | ||
| Dolby Surround | Yes | ||
| DTS:X | Yes | ||
| DTS-HD Master Audio | Yes | ||
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz | |
| Pure Direct | Yes | ||
| Compressed Music Enhancer | Yes | ||
| YPAO Multipoint Measurement | Yes | ||
| YPAO Volume | Yes | ||
| Adaptive DRC (Dynamic Range Control) | Yes | ||
| Initial Volume and Maximum Volume Setting | Yes | ||
| A.R.T. Wedge | N/A | ||
| Bi-amp Capability | Yes | ||
| Audio Delay | Yes (0-500 ms) | ||
| DA Converter | 384 kHz / 32-bit BB PCM5102A | ||
| Video Features | HDMI eARC | Yes | |
| HDMI Audio Return Channel | Yes | ||
| HDMI Pass-through | 4K120AB*, 8K60B* and 4K60 (*via future update) | ||
| HDMI Upscaling | Yes up to 4K | ||
| Dolby Vision | Yes | ||
| HDR 10+ | Yes (via future update) | ||
| VRR/ALLM/QMS/QFT | Yes (via future update) | ||
| Connectivity | MusicCast Surround | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | ||
| AirPlay 2 | Yes | ||
| Bluetooth | Yes (SBC / AAC) | ||
| Phono Input | Yes | ||
| Extensive Connections | HDMI Input/Output | 7 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible) | |
| HDMI CEC | Yes | ||
| USB Input | Yes | ||
| Network Port | Yes | ||
| Front AV Input | USB | ||
| Digital Audio Input / Output: Optical | 1 / 0 | ||
| Digital Audio Input / Output: Coaxial | 1 / 0 | ||
| Analog Audio Input / Output | 4 / 0 | ||
| Preout | 2.2-ch | ||
| Headphone Output | 1 | ||
| Tuner Section | FM / AM Tuner | Yes | |
| User Interface | On-Screen Display | Graphical User Interface | |
| SCENE | Yes (8 sets) | ||
| App Control | Yes (iPhone / iPad / Android phone / tablet) | ||
| Web Browser Control | Yes | ||
| Remote Control Unit | Yes | ||
| Zone Control | Zone 2 Audio Output | Preout | |
| Powered Zone | Zone 2 | ||
| +12V Trigger Output | 1 | ||
| Remote (IR) Input/Output | N/A | ||
| Party Mode | Yes | ||
| General | Standby Power Consumption (IR only) | 0.1 W | |
| Auto Power Standby | Yes | ||
| ECO Mode | Yes | ||
| Dimensions (W x H x D) | 17-1/8" x 6-3/4" x 14-7/8" (with antenna up:17-1/8" x 9-5/8" x 14-7/8") | ||
| Weight | 21.6 lbs. |
