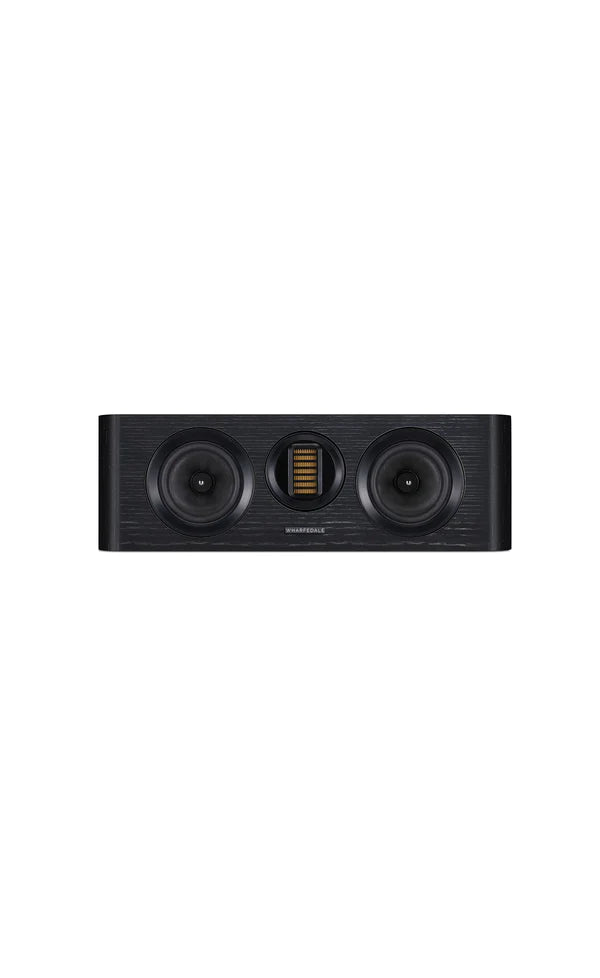

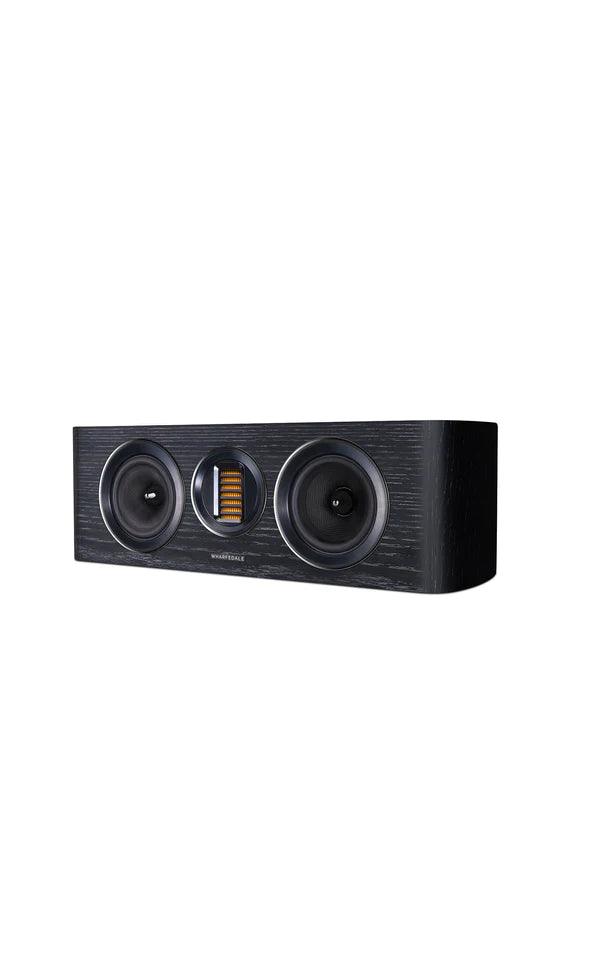

Wharfedale Evo4 CS Centre Speaker - Black

Wharfedale Evo4 CS Centre Speaker - BlackĀ

Ā

Wharfedaleā€™s new EVO4 has grown out of the extensive research and development that produced the ELYSIAN flagship loudspeakers and borrows much of the technology involved in ELYSIAN.

The primary focus is on the AMT development resulting in a radically different way of reproducing high frequency detail efficiently and accurately. Similar cabinet technology to ELYSIAN provides a stable and solid foundation for the drive units with radiused edges to help integrate the driver output with the room acoustics. In addition the unique SLPP bass reflex system, as developed for ELYSIAN, is now incorporated in EVO4.

Ā

Ā

SPECIFICATIONSĀ

Ā

General Description 2-way centre speaker
Enclosure Type bass reflex
Transducer Complement 2-way
Bass Driver 5"(130mm) Black Woven KevlarĀ® Cone x2
Midrange Driver
Treble Driver 30x60mm AMT
AV Shield No
Sensitivity (2.83V @ 1M) 89dB
Recommended Amplifier Power 25-100W
Peak SPL 103dB
Nominal Impedance 8Ī©
Minimum Impedance 4.4Ī©
Frequency Response (+/-3dB) 50Hz ~ 22kHz
Bass Extension (-6dB) 45Hz
Crossover Frequency 2.7kHz
Dimensions (HxWxD) 185 x 585 x (265+10)mm
Net Weight 11.6kg/pcs
