Under the hood, the Amp Ultra is powered by top-tier components:
ESS ES9039Q2M SABRE DAC
Dual TI TPA3255 Class-D amplifiers
Six TI OPA1612 op-amps
Dual TI TPA3255 Class-D amplifiers
Six TI OPA1612 op-amps
Combined with Post Filter Feedback (PFFB) technology, it delivers clean, detailed sound with consistent performance across all speaker loads—perfect for bookshelf, floor-standing, or in-wall speakers.
Post Filter Feedback Technology
At the core of the WiiM Amp Ultra’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Advanced Thermal Management
High-power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure with advanced thermal management:
- Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.
- L
arge Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.
-
Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.
Next-Gen Wireless Streaming
Stay connected with the latest in wireless tech:
Wi-Fi 6 (Tri-Band)
Bluetooth 5.3 with SBC and AAC support
Stream ultra-high-resolution audio with near-zero latency—no dropouts, no lag, just music.

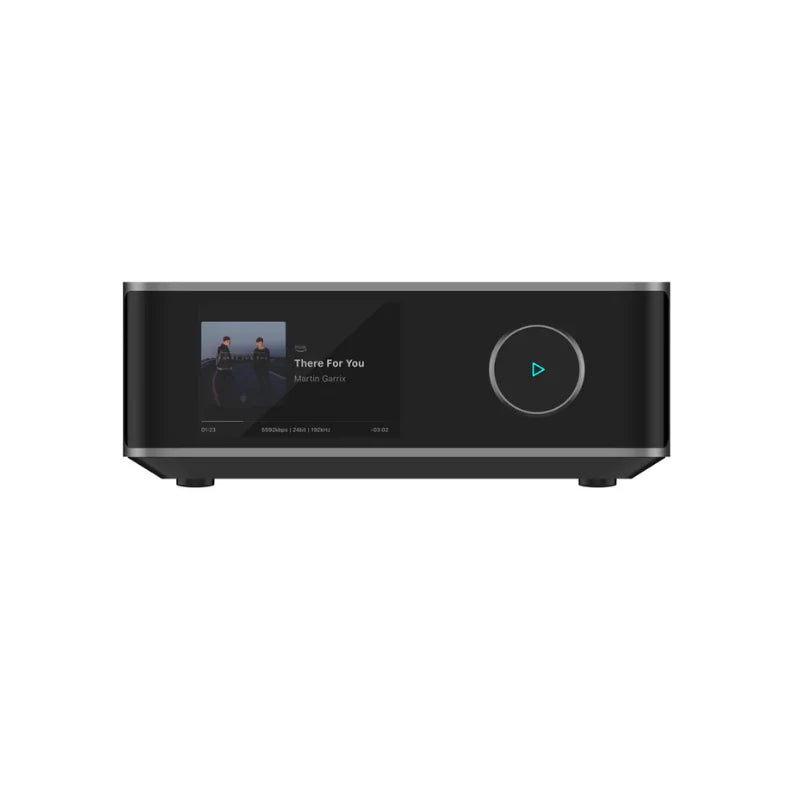

See Your Sound
A vivid 3.5″ glass touchscreen puts album art, VU meters, and one-tap controls front and center—making input switching, setting tweaks, and playback navigation
effortless, with instant visual feedback.
Built-In RoomFit™ Room Correction
Every room is different—WiiM Amp Ultra adapts. Using built-in acoustic measurement and correction, it tunes your setup to match your environment, optimizing for speaker type, distance, and room acoustics.
All the Music You Love, All in One Place
Stream directly from your favorite platforms:
Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, SoundCloud, and more.
Tailor Your Sound
Dial in the perfect tone with:
24 Preset EQ Profiles
10-Band Graphic and Parametric EQ
Per-input EQ settings
Subwoofer crossover control
Versatile Connectivity
Easily integrate turntables, TVs, CD players, or stream to any WiiM or Bluetooth-enabled device.
Control Everything with the WiiM Home App
One app. Total control.
Stream music, adjust EQ, group rooms, set alarms, or update firmware with ease—right from your phone or tablet.
Take full control with the WiiM Voice Remote 2
WiiM Voice Remote 2 crafted with a sleek aluminum body, rechargeable battery, and intuitive Push-to-Talk voice commands—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.
Smarter Listening
- Multi-Room Audio with WiiM, Google Home, and Alexa systems
-
Stereo Pairing for wider soundstage
-
Home Theater Mode with HDMI ARC and Dolby Digital support
-
Smart Presets & Alarm Clock to simplify your routine
-
Voice Control via Alexa, Google Assistant, or the included WiiM Voice Remote
Future-Proof by Design
We’re constantly improving. With regular OTA firmware updates, your Amp Ultra only gets better over time—with new features, streaming services, and optimizations.
Specifications:
Dimensions and Weight
Dimensions: 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm)
Weight: 5.4 lbs (2.45 kg)
Audio Performance
• Power Output (THD = 0.08%, two channels driven): 100 W per channel @ 8Ω, 200 W per channel @ 4Ω
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
•Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Damping Factor: 94
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 2 – 8Ω
Audio Processing
Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
Dynamic Range: ≥120dB for high-resolution sound

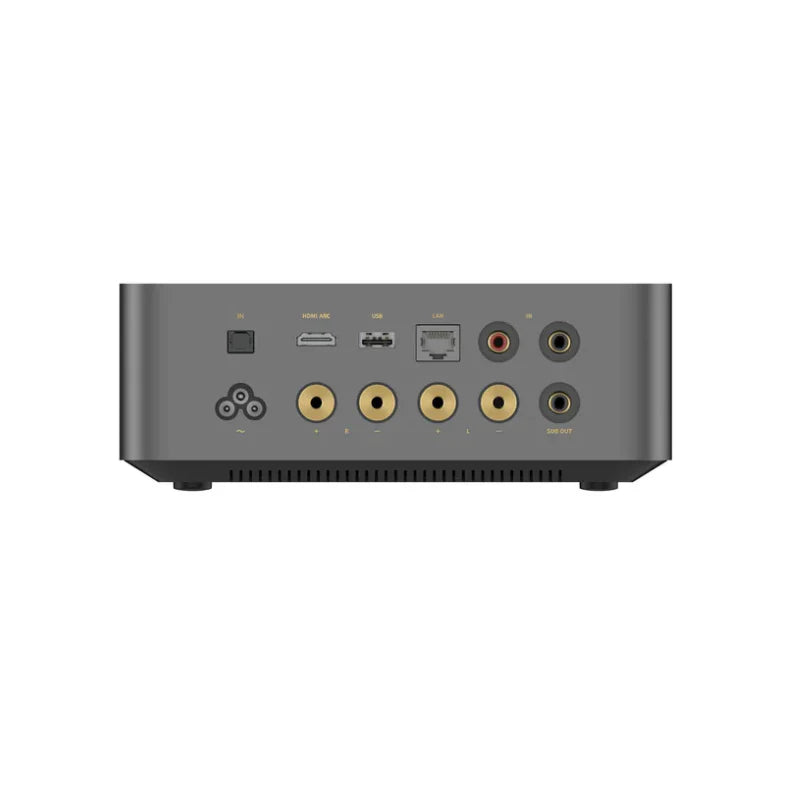

Input & Output Options
✅ Analog Inputs:
• 1x RCA Stereo: Connects to external audio sources like CD players or PCs
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ USB Audio Output:
• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
✅ Sub Output:
• Dedicated output for powered subwoofers (RCA Mono)
Wireless & Network Connectivity
Wireless Connectivity:
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
Wired Network:
Ethernet (100Mbps): Standard RJ45 port
EQ & Sound Customization
Input-Specific EQ:
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
EQ Tools:
▪ 24 Preset EQ Profiles
▪ 10-Band Graphic & Parametric EQ
▪ Built-in Room Correction with mic-guided acoustic tuning
Streaming & Smart Features
Streaming Protocols:
▪ WiiM Home App
▪ Chromecast Audio
▪ Spotify Connect
▪ TIDAL Connect
▪ DLNA, LMS
▪ Roon Ready (Certification Pending)
• Multi-Room Audio:
Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing:
Supports L/R speaker setup for enhanced stereo imaging
• Home Theater Mode:
Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets:
Quick access to favorite playlists, sources, or routines
• Alarm Clock:
Configurable time, repeat schedule, and music source

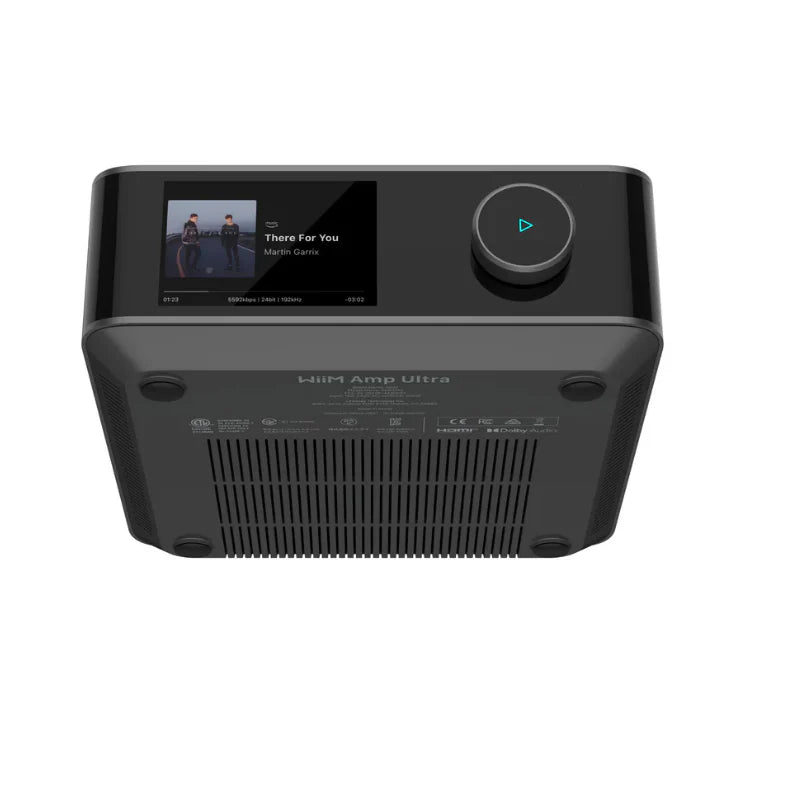

Touch Display
Screen:
3.5” glass-covered capacitive touchscreen
Functions:
▪ Playback controls, album art, EQ adjustment, input switching
▪ Queue view, preset access, VU meters, time/date in standby
▪ Custom wallpapers and onboarding setup (OOBE)
▪ Supports firmware updates directly via screen

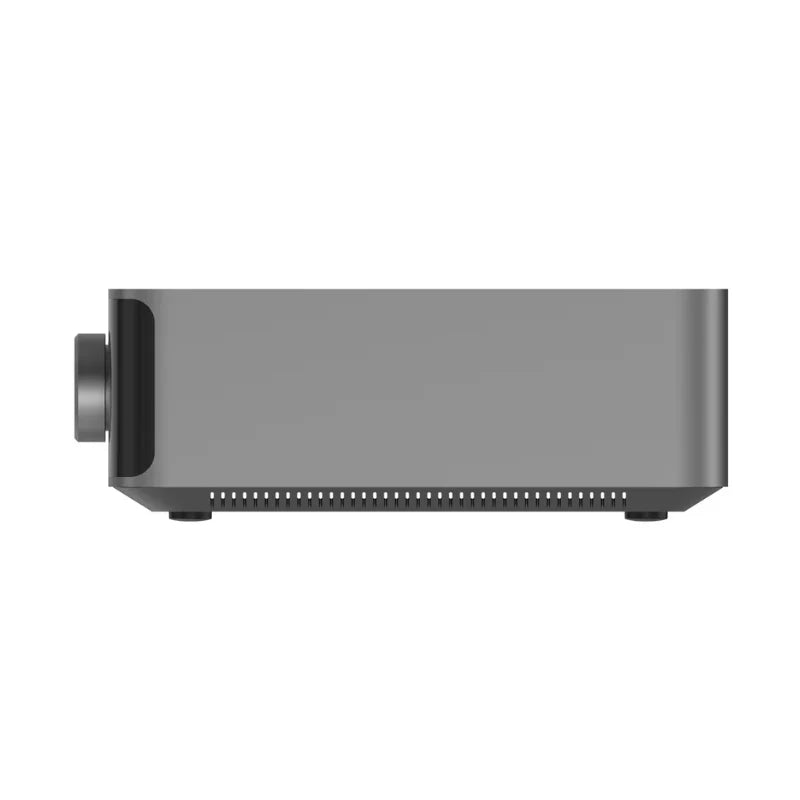

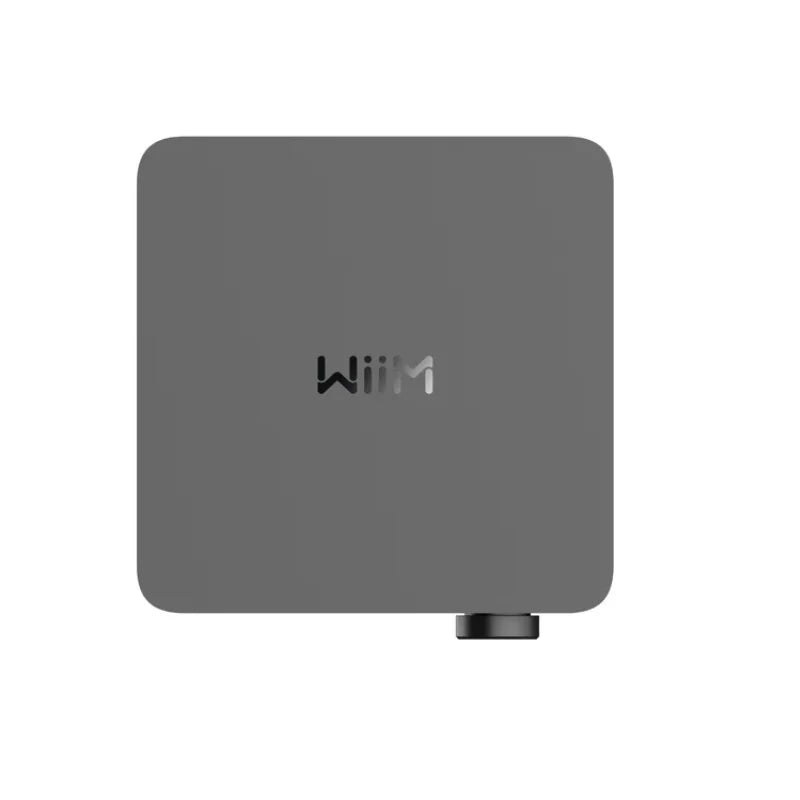

Design & Controls
Chassis: Precision-machined unibody aluminum for durability & heat dissipation
Dimensions: 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm)
Weight: 5.4 lbs (2.45 kg)
Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System: Passive, silent operation
Package Contents
User Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
