Yamaha NS 5.1 Home Theatre System with Yamaha RX-V4A 5.2 Channel AV Receiver - Black
Yamaha NS 5.1 Home Theatre System with Yamaha RX-V4A 5.2 Channel AV Receiver - Black
This Package Includes:
- 1X Yamaha RX-V4A 5.2 Channel AV Receiver (Black)
- 2XYamaha NS-F51 Floorstanding Speaker (Black
- 1X Yamaha NS P51 Home Theatre System (2x Bookshelf Speakers ,1X Center Speaker) (Black)
- 1X Yamaha NS-SW050 Subwoofer (Black)

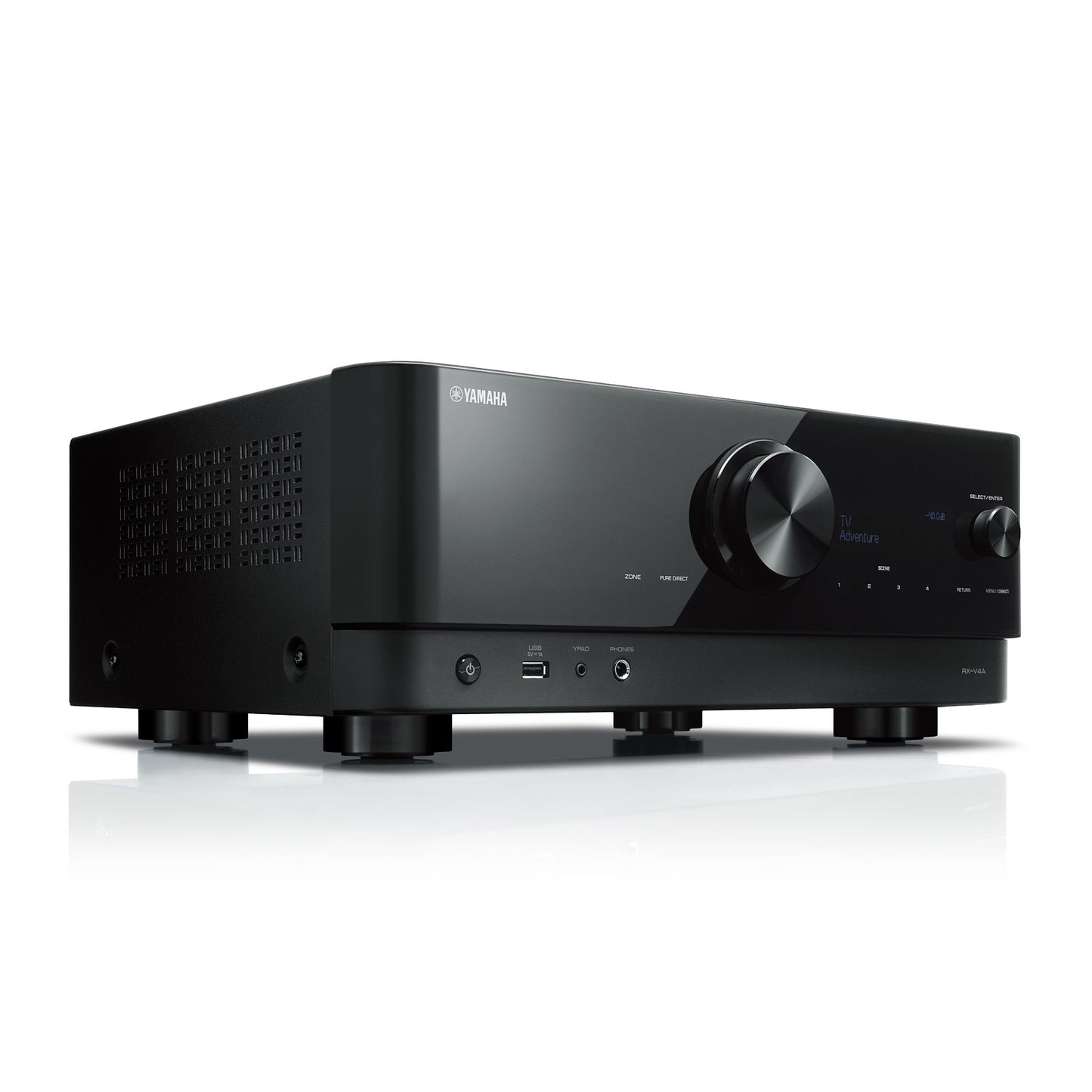

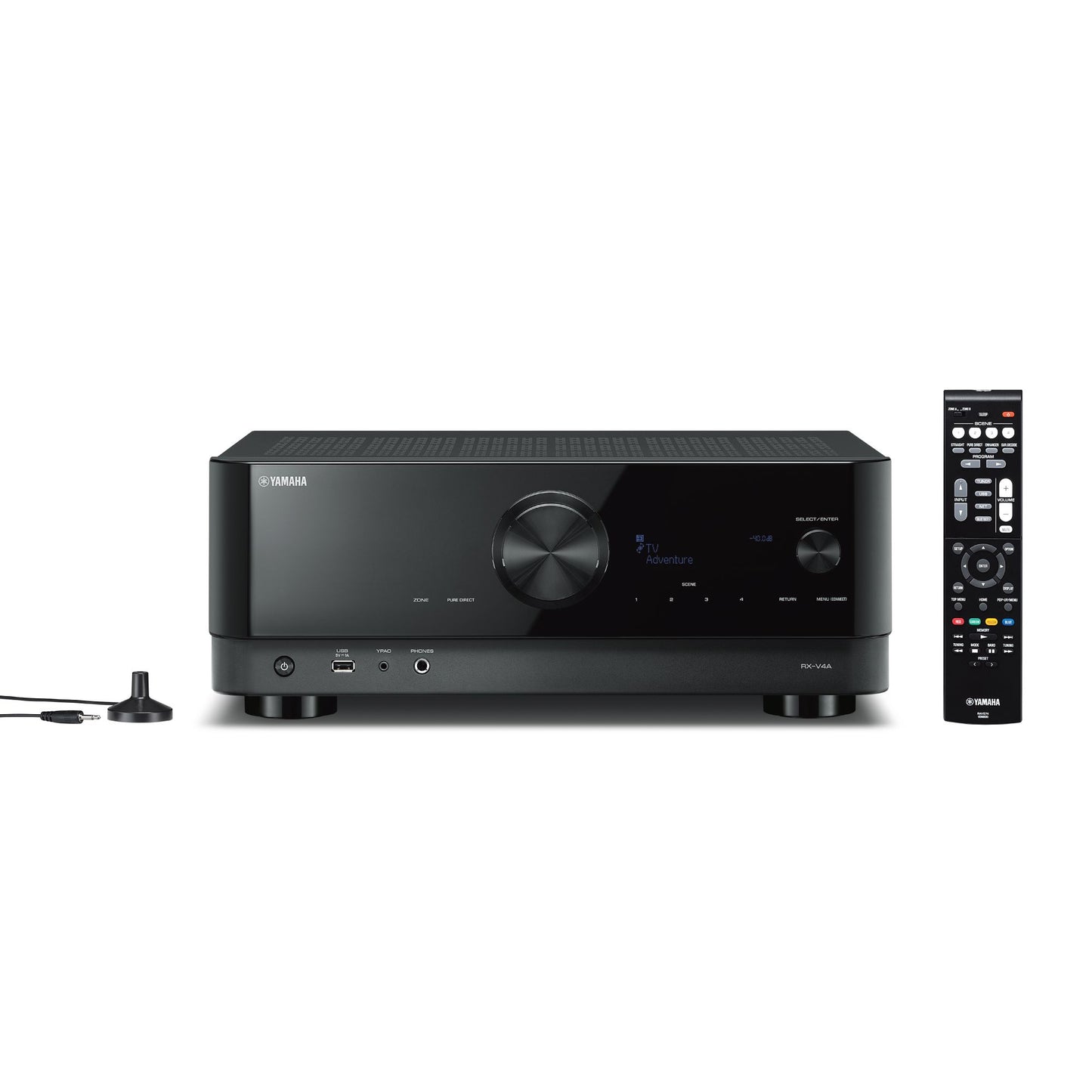

Yamaha RX-V4A 5.2 Channel AV Receiver - Black
RX-V4A 5.2 Channel AV Receiver
Bring the theater home. This 5.2-channel 80 Watt AV receiver creates a powerful and advanced home theater experience with the latest in video processing and Dolby TrueHD, DTS-HD Master Audio, app control, wireless streaming and more.
- 5.2-channel 80 Watt surround sound with Dolby TrueHD and DTS-HD
- 4K120AB and 8K60B HDMI with HDCP 2.3 and eARC (4 in/1 out)
- Dolby Vision™, Hybrid Log-Gamma and BT.2020
- Supports enhanced media and gaming – ALLM and VRR
- Wi-Fi®, AirPlay 2®, Spotify Connect and Voice Control
- MusicCast App control
- Pandora®, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer, Napster and more
- YPAO automatic room calibration
UNPARALLELED SOUND
CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
TRUE SOUND
Make every night movie night. In fact, feel like you've entered the story. The Yamaha approach to tonal balance delivers incredibly detailed and accurate timbre in each voicing. Dynamism is found in the emotive contrast between the stillness and motion in the movie. The urgency and suspense between action scenes is palpable through the sound field that is created.
MOVIES AND GAMES LIKE NEVER BEFORE
HDR and HDR10+
HDR (High Dynamic Range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.
HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.
4K120AB , 8K60B and 4K60
Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K120 enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision™ and Hybrid Log-Gamma.
Enhanced Media and Gaming (ALLM and VRR)
Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay.
SIMPLE TO SET UP, SIMPLE TO USE
AV Setup Guide App for Initial Setup
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.
Simple and Easy with the MusicCast App
Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app lets you easily and conveniently play music from your favorite streaming services.
Voice Control (Alexa, Google Assistant and Siri)
Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.
*A third party device is required to initiate voice commands
MADE FOR YOUR ROOM
YPAO™
YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated for optimum performance in your home theater room.
SCENE Buttons with the Ability to Preset Songs and Stations
Easily program up to 4 different preset scenarios using 4 SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (Network-attached Storage). Once you’ve set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.
STREAMING, APPS AND MORE
Stream it All
Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.
AirPlay 2
Hey Siri. Play music in the kitchen and living room.
AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri for an assist.
eARC
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.
eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.
RX-V4A | |||
---|---|---|---|
Amplifier Section | Channels | 5.2 | |
Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.06% THD) | ||
High Slew Rate Amplifier | Yes | ||
Surround Sound Processing | Cinema DSP | Yes | |
DSP Programs | 17 | ||
Dialog Level Adjustment | Yes | ||
Virtual Presence Speaker | Yes | ||
Virtual Surround Back Speaker | N/A | ||
Dialogue Lift | N/A | ||
SILENT Cinema / Virtual Cinema DSP | Yes | ||
Dolby Atmos | N/A | ||
Dolby Atmos Height Virtualization | N/A | ||
Dolby TrueHD | Yes | ||
Dolby Digital Plus | Yes | ||
Dolby Surround | N/A | ||
DTS:X | N/A | ||
DTS-HD Master Audio | Yes | ||
Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz | |
Pure Direct | Yes | ||
Compressed Music Enhancer | Yes | ||
YPAO Multipoint Measurement | N/A | ||
YPAO Volume | Yes | ||
Adaptive DRC (Dynamic Range Control) | Yes | ||
Initial Volume and Maximum Volume Setting | Yes | ||
A.R.T. Wedge | N/A | ||
Bi-amp Capability | Yes | ||
Audio Delay | Yes (0-500 ms) | ||
DA Converter | 384 kHz / 32-bit BB PCM5101A | ||
Video Features | HDMI eARC | Yes | |
HDMI Audio Return Channel | Yes | ||
HDMI Pass-through | 4K120AB, 8K60B, 4K60 and 24GBPS | ||
HDMI Upscaling | Yes up to 4K | ||
Dolby Vision | Yes | ||
HDR 10+ | Yes | ||
VRR & ALLM | Yes | ||
Connectivity | MusicCast Surround | Yes | |
Wi-Fi | Yes (2.4 / 5 GHz) | ||
AirPlay 2 | Yes | ||
Bluetooth | Yes (SBC / AAC) | ||
Phono Input | N/A | ||

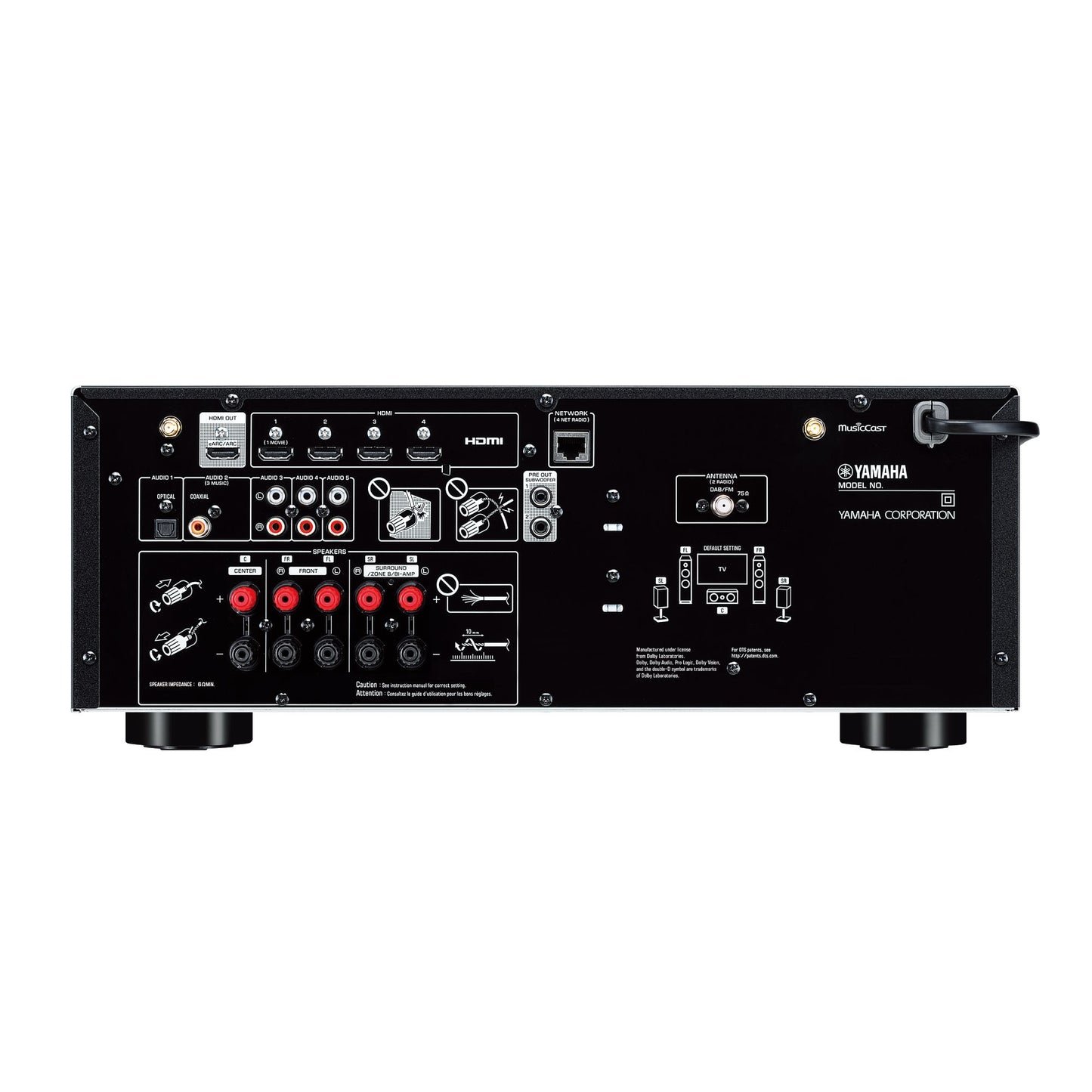

Extensive Connections | HDMI Input/Output | 4 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible) | |
HDMI CEC | Yes | ||
USB Input | Yes | ||
Network Port | Yes | ||
Front AV Input | USB | ||
Digital Audio Input / Output: Optical | 1 / 0 | ||
Digital Audio Input / Output: Coaxial | 1 / 0 | ||
Analog Audio Input / Output | 3 / 0 | ||
Preout | 0.2-ch | ||
Headphone Output | 1 | ||
Tuner Section | FM / AM Tuner | Yes | |
User Interface | On-Screen Display | Graphical User Interface | |
SCENE | Yes (4 sets) | ||
App Control | Yes (iPhone / iPad / Android phone / tablet) | ||
Web Browser Control | N/A | ||
Remote Control Unit | Yes | ||
Zone Control | Zone 2 Audio Output | N/A | |
Powered Zone | N/A | ||
+12V Trigger Output | N/A | ||
Remote (IR) Input/Output | N/A | ||
Party Mode | N/A | ||
General | Standby Power Consumption (IR only) | 0.1 W | |
Auto Power Standby | Yes | ||
ECO Mode | Yes | ||
Dimensions (W x H x D) | 17-1/8" x 6-3/4" x 14-7/8" D (with antenna up:17-1/8" x 9-5/8" x 14-7/8") | ||
Weight | 19.4 lbs. |

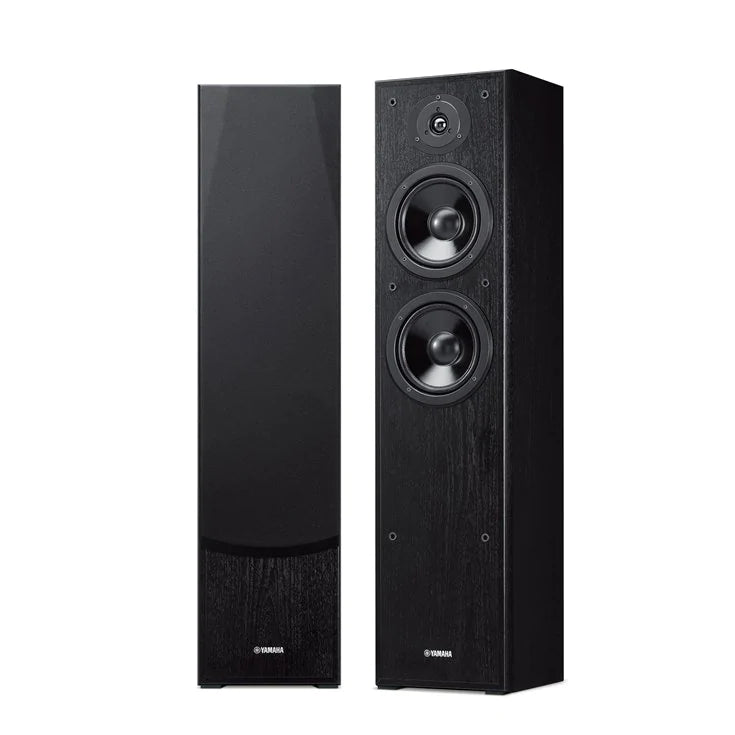

Yamaha NS-F51 Floorstanding Speaker - Pair - Black
Product Information
This high performance floor-standing speaker uses a two-way, three-speaker configuration with two 16cm (6-1/2”) cone woofers and one 3cm (1”) soft dome tweeter for beautifully clear sound with immensely powerful bass.
- A perfect match for large-screen TVs. A home theatre speaker system that provides full enjoyment of even HD sound sources
- A perfect match for large-screen TVs
- Two 16cm (6-1/2”) cone woofers and 3cm (1”) soft dome tweeter for strong bass and smooth full-range sound
- Low-diffraction rounded form for clear sound free of murkiness
- A front grille and rounded form with luxurious, upscale design
FEATURES:
High performance floor-standing speaker delivers optimum sound with superior expressiveness for movies and music.
The NS-F51 features a two-way, three-speaker configuration consisting of two 16cm (6-1/2”) cone woofers and one 3cm (1”) soft dome tweeter. It takes advantage of a 97cm (38-3/8”)-tall, large-capacity cabinet to produce thrilling bass tones, and with a bracing system to suppress cabinet resonance it also produces crystal-clear treble tones. The wooden circuit board in the network circuit demonstrates the commitment to sound quality. Not only for movies, but also for various other sources like CDs, MP3 and streaming music, you’ll enjoy music with superior expressiveness.
Low-diffraction rounded form for clear sound free of murkiness.
Speaker cabinets are rounded to reduce the diffraction effects that cause murky sound. Experience crystal-clear natural sound that you won’t tire of no matter how long you listen.
A front grille and rounded form with luxurious, upscale design
Enjoy a sense of luxury with a front grille featuring slanted corners and a design that brings to mind Yamaha’s flagship speakers. And with the speaker cabinet also sporting a rounded shape, the unity of design will fit beautifully into your home theatre space.
NS-F51 | ||
---|---|---|
Type | 2-way bass-reflex floorstanding speaker | |
Woofers | Dual 16cm (6-1/2”) cone | |
Tweeter | 3cm (1”) soft dome | |
Frequency Response | 43 Hz–26 kHz | |
Nominal Input Power | 80 W | |
Maximum Input Power | 240 W | |
Sensitivity | 89 dB/2.83 V/1 m | |
Impedance | 6 ohms | |
Dimensions (W x H x D) | 233 x 973.5 x 254 mm; 9-1/8” x 38-3/8” x 10” | |
Weight | 13.7 kg; 30.2 lbs./unit |

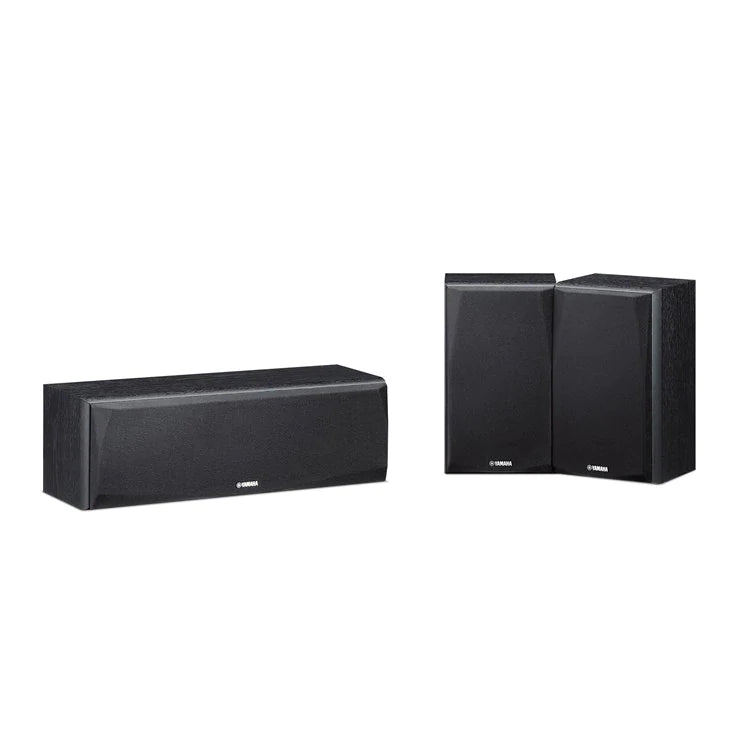

Yamaha NS P51 Home Theatre System - Black
The NS-51 Series speakers enable you to enjoy a wide range of HD material including films and music with a full sense of the scale of the sound.
Rounded form for clear sound free of murkiness.
All NS-P51 speaker cabinets are rounded to reduce the diffraction effects that cause murky sound. Experience crystal-clear natural sound that you won’t tire of no matter how long you listen.
A front grille with luxurious, upscale design
Enjoy a sense of luxury with a front grille featuring slanted corners and a design that brings to mind Yamaha’s flagship speakers. And with the speaker cabinet also sporting a rounded shape, the unity of design will fit beautifully into your home theatre space.
Wall Mountable
The centre and surround speakers have keyholes on the back so they can be quickly and securely wall mounted, providing installation flexibility to suit your room and preferences.
A perfect match for large-screen TVs
The NS-51 Series speakers enable you to enjoy a wide range of HD material including films and music with a full sense of the scale of the sound. The NS-F51 floor-standing speaker (SOLD SEPARATELY) produces a wide range of rich sound, and together with the NS-P51 speaker package, which delivers clear dialogue and vocal sound, you can create a full-scale theatre optimal for large-screen TVs.
Specifications
Center Speaker
Woofers Dual 10cm (4”) cone
Tweeter 2.2cm (7/8”) balanced dome
Frequency Response 70 Hz–36 kHz
Nominal Input Power 60 W
Maximum Input Power 180 W
Sensitivity 92 dB/2.83 V/1 m
Impedance 6 ohms
Dimensions (W x H x D) 415 x 135 x 167 mm; 16-3/8” x 5-3/8” x 6-5/8”
Weight 3.2 kg; 7.1 lbs./unit
Surround Speaker
Woofers 10cm (4”) cone
Tweeter 2.2cm (7/8”) balanced dome
Frequency Response 69 Hz–36 kHz
Nominal Input Power 50 W
Maximum Input Power 150 W
Sensitivity 89 dB/2.83 V/1 m
Impedance 6 ohms
Dimensions (W x H x D) 148 x 252 x 150 mm; 5-7/8” x 9-7/8” x 5-7/8”
Weight 2 kg; 4.4 lbs./unit

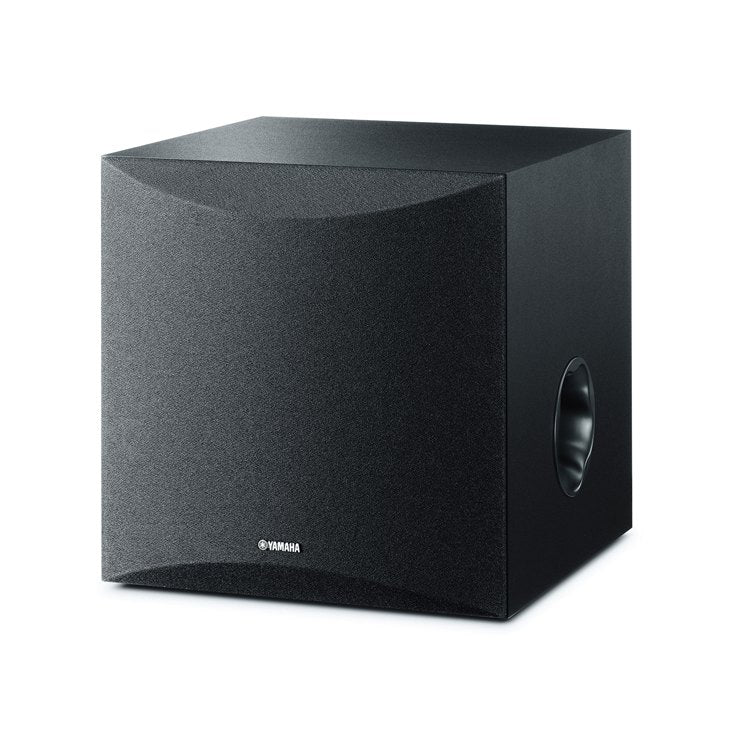

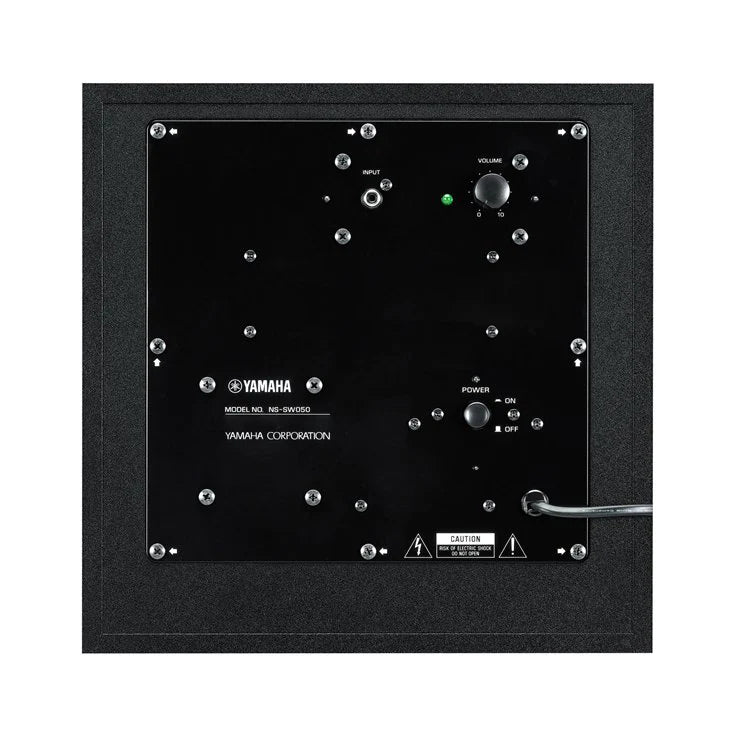

This compact subwoofer incorporates a number of Yamaha advanced, high-performance bass technologies, such as Twisted Flare Port, Advanced YST II (Yamaha Active Servo Technology II) with discrete amp circuitry and a high-quality 8" woofer unit. The resulting bass response is powerfully rich and impactful. The gentle curves and matte black finish give the subwoofer a stylish and beautiful appearance.
- New Twisted Flare Port contributes to clear and tight bass
- Advanced YST II (Yamaha Active Servo Technology II)
- 8" cone woofer
- Stylish addition to any room
FEATURES:
Clear and Tight Bass
The new Twisted Flare Port takes advantage of extensive subwoofer development experience. The gently twisting flared shape creates a smooth flow of air around the edge of the port versus the turbulent air flow around a conventional port. This reduces extraneous noise not present in the original input signal and provides clear, accurate low frequency reproduction. From special effect sounds in movies to the atmosphere of a live venue, you hear bass that is clear, tight and realistic.
Deep Lows
Developed by Yamaha, the Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone with even tighter control than the previous version. Using Advanced Negative Impedance Converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain excellent linearity. This means more stable and accurate low range response, not to mention higher sound quality.
More than a Black Box
The gently rounded form with a slanted front surface is stylishly elegant. Designed to be unobtrusive, it’s sure to look beautiful in a living room or home theater room and will match a wide range of speakers. More than a black box, it’s the heartbeat of your home theater system.
SPECIFICATIONS:
NS-SW050 | ||
---|---|---|
Driver | 8" cone | |
Dynamic Power | 100 W (5 ohms) | |
Output Power | 50 W (100 Hz, 5 ohms, 10% THD) | |
Frequency Response | 28–200 Hz | |
Advanced YST | Yes | |
Twisted Flare Port | Yes | |
Dimensions (W x H x D) | 11-1/2" x 11-1/2" x 13-3/8" | |
Weight | 18.7 lbs. |
